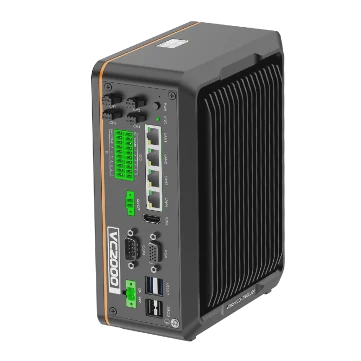

Hikrobot MV-VC2143-128G40-NN VC2100 Vision Controller, N97, 8GB+128G SSD, Supported POE
Model MV-VC2143-128G40-NN
Hikrobot MV-VC2143-128G40-NN VC2100 Vision Controller, N97, 8GB+128G SSD, Supported POE. Adopts Intel® Alder Lake-N processor to provide calculation. Supports GPIO function.
Features
- Adopts Intel® Alder Lake-N processor to provide calculation.
- Supports GPIO function.
- Supports 4-channel light source control.
- Adopts GigE interfaces for stable data transmission.
- Built-in USB interface or dongle is optional.
Specifications
| Model | MV-VC2143-128G40-NN |
|---|---|
| Brand | Hikrobot |
| CPU | Intel® Processor N97 |
| Memory | 8 GB |
| Storage | 128 GB SSD |
| GPU | Intel® UHD Graphics |
| Operating system | Unactivated 64-bit Windows 10 LTSC 21H2 |
| Encryption method | Not support |
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz |
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 8 |
| Light interface | Light interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control) |
| Network interface | GigE interface × 4, supports PoE (The total loading is 20 W) |
| USB interface | USB 2.0 × 2; USB 3.0 × 2 |
| Serial port | RS-232 × 1, supports switching to RS-485 or RS-422 |
| Power supply | 24 VDC |
| Power consumption | Typ. 71 W (without light source) |
| Dimension | 166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4") |
| Weight | Approx. 2 kg (4.4 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
| Shipping weight (estimated) | 2.90 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the VC2000 series Vision Controller series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-VC2140-128G40-1T | N97, 8GB+128G SSD+ 1THDD | $1,119.00 | 3 in stock | View |
| MV-VC2140-128G40-NN | N97, 8GB+128G SSD | $1,119.00 | 2 in stock | View |
| MV-VC2143-128G40-1T | N97, 8GB+128G SSD+ 1THDD | $1,119.00 | 2 in stock | View |
