Fixed code readers

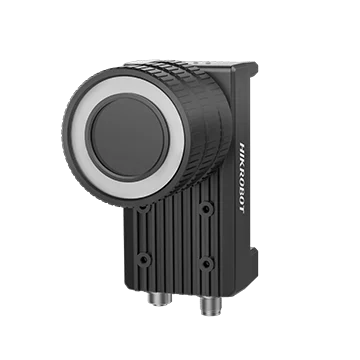

Hikrobot MV-ID6250PM-00C-NNG 25 MP logistics code reader
Model MV-ID6250PM-00C-NNG
Hikrobot MV-ID6250PM-00C-NNG 25 MP logistics code reader. 25 MP global-shutter ultra-high resolution covers an extra-large field of view, well suited to medium- and high-speed DWS applications Dedicated logistics deep-learning algorithm handles distorted, wrinkled, dirty and damaged barcodes
Features
- 25 MP global-shutter ultra-high resolution covers an extra-large field of view, well suited to medium- and high-speed DWS applications
- Dedicated logistics deep-learning algorithm handles distorted, wrinkled, dirty and damaged barcodes
- Multi-code reading across the field of view and shipping label extraction
- Gigabit transmission with original image output for archiving
- Networking support: build multi-reader systems via the code reading platform
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID6250PM-00C-NNG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 128, Code 93, Code 11, ITF25, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 25, MSI, Industrial 2of5, China Post, etc.; Matrix 2D code: QR Code, Data Marix; Stacked 2D code: PDF417 |
| Max. frame rate | 20 fps |
| Max. reading speed | 60 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.5 μm×2.5 μm |
| Sensor size | 1” |
| Resolution | 5120 × 5120 |
| Exposure time | 16 μs ~ 0.5 sec |
| Gain | Analog gain: up to 5×; Digital gain: -6 to 6 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | Mono |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 17 W@24 VDC |
| Lens mount | C-Mount |
| Light source | Not included |
| Lens cap | 12 W@24 VDC |
| Dimension | 126 mm × 66 mm × 113.2 mm |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress protection | 126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5") |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Compatibility | CE, RoHS |
| Shipping weight (estimated) | 1.15 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID6000 Series Logistic Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID6120PM-00C-NNG | 12.6 MP, 1.1" | Price on request | 5 in stock | View |
| MV-ID6200M-00C-NNG | 19.8 MP, 1" | Price on request | 2 in stock | View |
| MV-ID6200EM-00C-NNG | 19.8 MP, 1" | Price on request | 3 in stock | View |
| MV-ID6200PM-00C-NNG | 20.3 MP | Price on request | 5 in stock | View |
| MV-ID6200PM-KU | 20.3 MP | Price on request | 2 in stock | View |
| MV-ID6200EM-LS | 19.8 MP | Price on request | 5 in stock | View |
| MV-ID6200EM-16Cef-NNG | 19.8 MP, 16 mm lens | Price on request | 4 in stock | View |
| MV-ID6200EM-25Cef-NNG | 19.8 MP, 25 mm lens | Price on request | 2 in stock | View |
