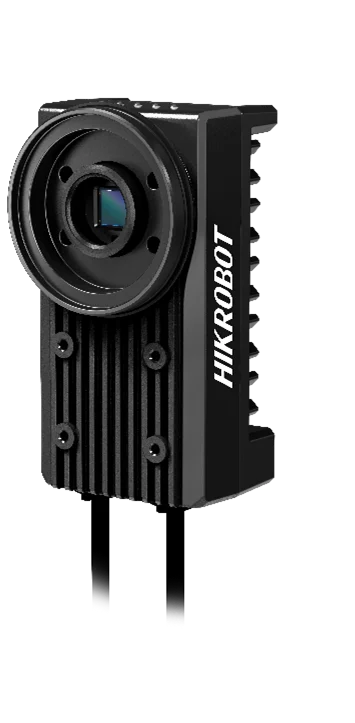

Hikrobot MV-ID6200EM-LS 20MP Logistic Code Reader
Model MV-ID6200EM-LS
Hikrobot MV-ID6200EM-LS 20MP Logistic Code Reader. Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes Sony ultra-high-resolution sensor with horizontal resolution up to 5K pixels; the bottom horizontal field of view covers a 1 m conveyor
Datasheet (PDF, Chinese) - MV-ID6200EM-LSUser manual (PDF, Chinese) - MV-ID6200EM-LSCAD: 3D STEP + 2D DXF (ZIP) - MV-ID6200EM-LS
Features
- Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes
- Sony ultra-high-resolution sensor with horizontal resolution up to 5K pixels; the bottom horizontal field of view covers a 1 m conveyor
- A single camera rapidly reads multiple codes across an extra-wide field of view
- Networking support for multi-camera fusion systems
- Easy setup and fast commissioning; with the dedicated logistics code-reading light, enables dynamic DWS applications at 1.8 m/s
Specifications
| Model | MV-ID6200EM-LS |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2D codes: QR Code, Data Matrix |
| Max. frame rate | 12 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1” |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs ~ 500 ms |
| Mono/color | Mono |
| Gain | 0 ~ 40 dB |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power supply | 12 ~ 24 VDC |
| Max. power consumption | 12 W@24 VDC |
| Lens mount | C-Mount |
| Light source | Not included |
| Lens cap | Not included |
| Dimension | 126 mm × 66 mm × 55.3 mm |
| Weight | Approx. 550 g (1.2 lb.) |
| Ingress protection | IP64 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.87 kg |
