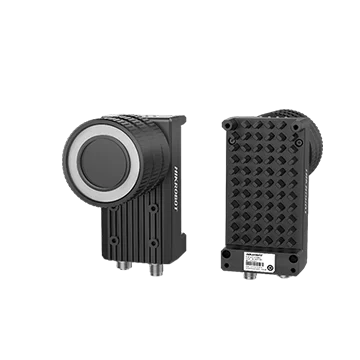

Hikrobot MV-ID6200M-00C-NNG 20MP Logistic Code Reader
Model MV-ID6200M-00C-NNG
Hikrobot MV-ID6200M-00C-NNG 20MP Logistic Code Reader. Provides 20 MP resolution to cover a larger field of view. Adopts deep learning algorithm with good robustness to recognize various poor printing quality codes.
Datasheet (PDF) - MV-ID6200M-00C-NNGUser manual (PDF) - MV-ID6200M-00C-NNGCAD: 3D STEP + 2D DXF (ZIP) - MV-ID6200M-00C-NNG
Features
- Provides 20 MP resolution to cover a larger field of view.
- Adopts deep learning algorithm with good robustness to recognize various poor printing quality codes.
- Supports recognition of multiple codes in the field of view.
- Supports gigabit Ethernet transmission to output images.
- Supports networking of multiple devices via code reading platform.
- Ingress protection (IP) 67.
Specifications
| Model | MV-ID6200M-00C-NNG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14; 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 20 fps |
| Max. reading speed | 60 codes/sec |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1" |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs to 0.5 sec |
| Gain | 0 dB to 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP |
| Data interface | Gigabit Ethernet |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 12 W@24 VDC |
| Lens mount | C-mount |
| Light source | Not included |
| Lens cap | Included |
| Dimension | 126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress protection | IP67 ( under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.15 kg |
