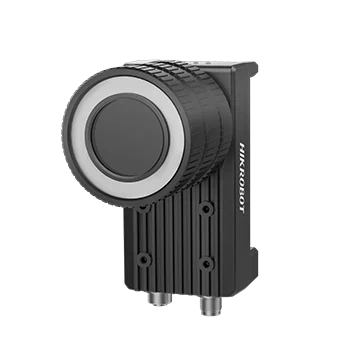

Hikrobot MV-ID6120PM-00C-NNG 12MP Logistic Code Reader
Model MV-ID6120PM-00C-NNG
Hikrobot MV-ID6120PM-00C-NNG 12MP Logistic Code Reader. Adopts 12 MP sensor to provide high-quality images. Flexible installation and convenient debugging.
Features
- Adopts 12 MP sensor to provide high-quality images.
- Flexible installation and convenient debugging.
- Supports continuous reading of various codes with high speed.
- Supports recognizing various poor printing quality codes.
- Supports gigabit Ethernet transmission to output images.
- Supports networking of multiple devices.
- Ingress protection 67.
Specifications
| Model | MV-ID6120PM-00C-NNG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2D codes: QR Code, Data Matrix |
| Max. frame rate | 28 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm;3.2 μm × 3.2 μm |
| Sensor size | 1.1";1" |
| Resolution | 4096 × 3072 |
| Exposure time | 16 μs to 1 sec |
| Gain | 0 dB to 37 dB;0 dB to 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 17 W @ 24 VDC |
| Lens mount | C-mount |
| Light source | Not included |
| Lens cap | Included |
| Dimension | 126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress protection | IP67 ( under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.15 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
