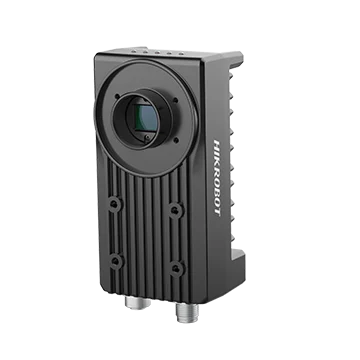

Hikrobot MV-ID6200EM-00C-NNG 20MP Logistic Code Reader
Model MV-ID6200EM-00C-NNG
Hikrobot MV-ID6200EM-00C-NNG 20MP Logistic Code Reader. Built-in deep learning algorithm to read codes with good robustness. Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FoV covering 1-meter conveyor line.
Datasheet (PDF) - MV-ID6200EM-00C-NNGUser manual (PDF) - MV-ID6200EM-00C-NNGCAD: 3D STEP + 2D DXF (ZIP) - MV-ID6200EM-00C-NNG
Features
- Built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS sensor to provide high-quality images with horizontal resolution of 5K and bottom horizontal FoV covering 1-meter conveyor line.
- Supports rapid recognition of multiple codes within large FoV.
- Supports networking of multiple devices.
- Flexible installation and convenient debugging.
Specifications
| Model | MV-ID6200EM-00C-NNG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2D codes: QR Code, Data Matrix |
| Max. frame rate | 12 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1" |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs to 500 ms |
| Gain | 0 dB to 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 12 W @ 24 VDC |
| Lens mount | C-mount |
| Light source | Not included |
| Lens cap | Not included |
| Dimension | 126 mm × 66 mm × 55.3 mm (5.0" × 2.6" × 2.2") |
| Weight | Approx. 550 g (1.2 lb.) |
| Ingress protection | IP64 |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.87 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the ID6000 Series Logistic Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID6120PM-00C-NNG | 12.6 MP, 1.1" | Price on request | 5 in stock | View |
| MV-ID6200M-00C-NNG | 19.8 MP, 1" | Price on request | 2 in stock | View |
