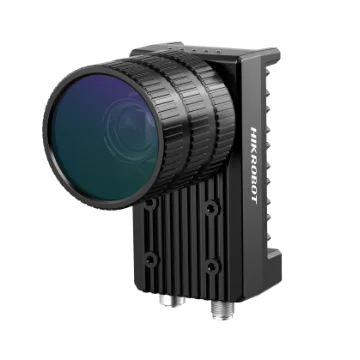

Hikrobot MV-ID6200EM-16Cef-NNG 20MP Logistic Code Reader
Model MV-ID6200EM-16Cef-NNG
Hikrobot MV-ID6200EM-16Cef-NNG 20MP Logistic Code Reader. Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes Excellent ultra-high-resolution sensor for superior image quality
Datasheet (PDF, Chinese) - MV-ID6200EM-16Cef-NNGUser manual (PDF, Chinese) - MV-ID6200EM-16Cef-NNGCAD: 3D STEP + 2D DXF (ZIP) - MV-ID6200EM-16Cef-NNG
Features
- Built-in deep-learning decoding algorithm handles distorted, wrinkled, ink-bleed and dirty codes
- Excellent ultra-high-resolution sensor for superior image quality
- A single camera rapidly reads multiple codes across an extra-wide field of view
- Networking support for multi-camera fusion systems
- Easy setup and fast commissioning; with the dedicated logistics code-reading light, enables dynamic DWS applications at 1.8 m/s
- Motorized C-mount lens with fast focusing for sharp barcode images
Specifications
| Model | MV-ID6200EM-16Cef-NNG |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2D codes: QR Code, Data Matrix |
| Max. frame rate | 12 fps |
| Max. reading speed | 18 codes/s |
| Sensor type | Rolling shutter, Mono, 1”, 2.4 μm × 2.4 μm |
| Resolution | 5440 × 3648 |
| Exposure time | 16 μs ~ 500 ms |
| Gain | 0 ~ 40 dB |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 3/4/5) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power supply | 12(±5%) ~ 24(±5%) VDC |
| Power consumption | Avg. power: 4.8 W @ 24 VDC; Max. power: 12 W @ 24 VDC |
| Focal length | 16 mm |
| Lens mount | C-Mount |
| Lens cap | 12 W@24 VDC |
| Light source | Not included |
| Shell material | Metal |
| Dimension | 126 mm × 66 mm × 118.2 mm |
| Weight | Approx. 680 g |
| Ingress protection | 126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5") |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z: 2 hours per direction (IEC 60068-2-6: 2007\GB/T2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Compatibility | CE, RoHS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 1.05 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the ID6000 Series Logistic Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-ID6120PM-00C-NNG | 12.6 MP, 1.1" | Price on request | 5 in stock | View |
| MV-ID6200M-00C-NNG | 19.8 MP, 1" | Price on request | 2 in stock | View |
| MV-ID6200EM-00C-NNG | 19.8 MP, 1" | Price on request | 3 in stock | View |
| MV-ID6200PM-00C-NNG | 20.3 MP | Price on request | 5 in stock | View |
| MV-ID6200PM-KU | 20.3 MP | Price on request | 2 in stock | View |
| MV-ID6200EM-LS | 19.8 MP | Price on request | 5 in stock | View |
| MV-ID6200EM-25Cef-NNG | 19.8 MP, 25 mm lens | Price on request | 2 in stock | View |
| MV-ID6250PM-00C-NNG | 26.2 MP | Price on request | 2 in stock | View |
