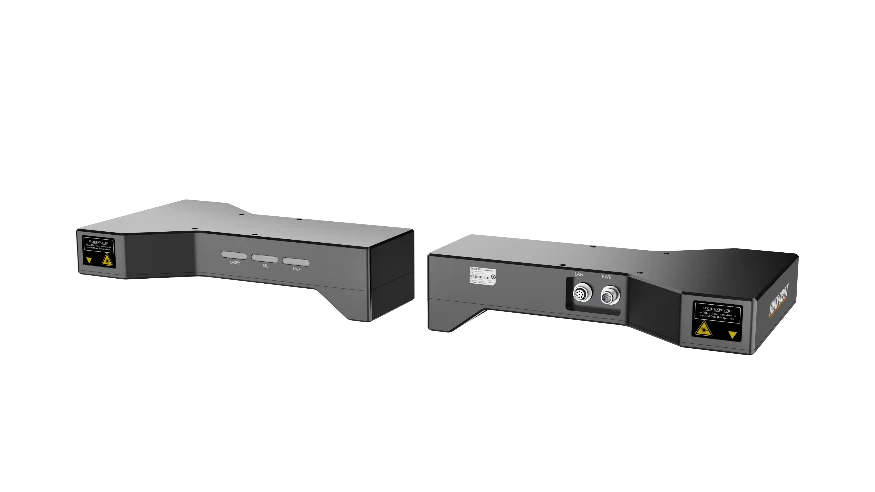

Hikrobot MV-DL2126-04P-R Line Laser 3D Camera
Model MV-DL2126-04P-R
Hikrobot MV-DL2126-04P-R Line Laser 3D Camera. Wide dynamic range algorithm for more accurate measurement of highly reflective or absorbent materials Optimized efficiency, up to 3 m/s
Datasheet (PDF, Chinese) - MV-DL2126-04P-RUser manual (PDF, Chinese) - MV-DL2126-04P-RCAD: 3D STEP + 2D DXF (ZIP) - MV-DL2126-04P-R
Features
- Wide dynamic range algorithm for more accurate measurement of highly reflective or absorbent materials
- Optimized efficiency, up to 3 m/s
- Sub-pixel technology with accuracy down to 5 mm
- High-power laser module for wider dynamic range
- Narrow-band filter for stronger interference resistance
- Precise exposure synchronization for more stable performance
- Outputs volume (L × W × H and integrated volume), point clouds and position coordinates
Specifications
| Model | MV-DL2126-04P-R |
|---|---|
| Brand | Hikrobot |
| Near field of view | 700 mm |
| Far field of view | 2000 mm |
| Clearance distance (CD) | 260 mm |
| Measurement range (MR) | 470 mm |
| Detection accuracy | ± 5 mm (standard object) |
| Detection speed | 3 m/s @ ± 5 mm detection accuracy |
| Scan frame rate | 1140 fps@300 mm depth measurement range |
| Data type | Point cloud data, length/width/height, integral volume, top coordinates, depth image, brightness image |
| Trigger mode | External trigger, encoder trigger (max. 15 kHz trigger signal supported) |
| Laser safety class | Class 3B |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1. |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 16.8 W@24 VDC |
| Dimension | 314 mm × 187.5 mm × 72.5 mm |
| Weight | 2 kg |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | 3DMVS, CodePlatform |
| Operating system | Windows 7/10/11 32/64bits |
| Certification | CE |
| Shipping weight (estimated) | 2.90 kg |
