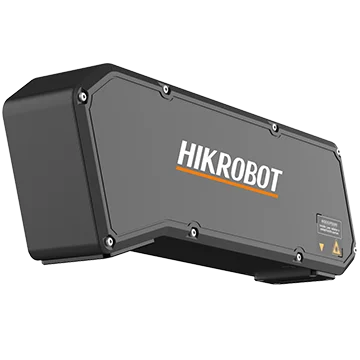

Hikrobot MV-DL2125-04H-R Line Laser 3D Camera
Model MV-DL2125-04H-R
Hikrobot MV-DL2125-04H-R Line Laser 3D Camera. Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection. Detection speed up to 3 m/s and accuracy of ± 5 mm.
Features
- Adopts wide dynamic range algorithm to accurately measure materials of high-absorbance or high-reflection.
- Detection speed up to 3 m/s and accuracy of ± 5 mm.
- Adopts high-power laser module with wide dynamic range.
- Adopts narrow band pass filter to suppress the interference.
- Stable performance with simultaneous exposure and laser.
- Supports outputting data type of length/width/height, integral volume, point cloud data, and location coordinates.
Specifications
| Model | MV-DL2125-04H-R |
|---|---|
| Brand | Hikrobot |
| Near field of view | 1000 mm |
| Far field of view | 2600 mm |
| Clearance distance (CD) | 700 mm |
| Measurement range (MR) | 1000 mm |
| Detection accuracy | ± 5 mm (regular object) |
| Detection speed | 3 m/s @ ±5 mm detection accuracy |
| Scan frame rate | 600 fps @ 1 m3 measurement range |
| Data type | Point cloud data, length/width/height, integral volume, peak coordinates, depth image |
| Trigger mode | External trigger, encoder trigger (max. 15 KHz trigger signal supported) |
| Laser safety class | Class 3B |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7), RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 10 W @ 12 VDC |
| Dimension | 354.1 mm × 65 mm × 123.4 mm (13.9" × 2.6" × 4.9") |
| Weight | 1.6 kg (3.5 lb.) |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20%RH to 85% RH, no condensation |
| Client software | 3DMVS, CodePlatform |
| Operating system | 32/64-bit Windows 7/10 |
| Certification | CE |
| Shipping weight (estimated) | 2.34 kg |
