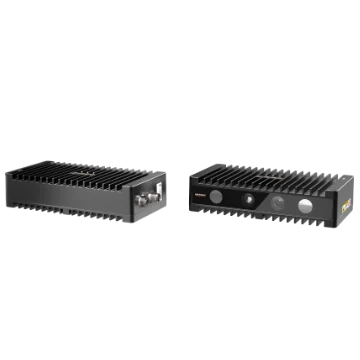

Hikrobot MV-DB500S-V RGB-D Smart 3D Camera (Volume Measurement)
Model MV-DB500S-V
Hikrobot MV-DB500S-V RGB-D Smart 3D Camera. High performance sensor and high efficient laser module to output millimeter-scale depth images. Built-in deep learning algorithm related with volume measurement and supports direct output of volume data.
Datasheet (PDF) - MV-DB500S-VUser manual (PDF) - MV-DB500S-VCAD: 3D STEP + 2D DXF (ZIP) - MV-DB500S-V
Features
- High performance sensor and high efficient laser module to output millimeter-scale depth images.
- Built-in deep learning algorithm related with volume measurement and supports direct output of volume data.
- Provides multi-platform SDK for secondary development.
- Supports synchronized output of RGB images and depth images.
- Adopts narrow band filters to have stronger anti-interference ability.
- Provides default internal parameters calibration.
- Ingress Protection (IP) 65.
Specifications
| Model | MV-DB500S-V |
|---|---|
| Brand | Hikrobot |
| Near field of view | 580 mm × 470 mm |
| Far field of view | 2400 mm × 1800 mm |
| Clearance distance (CD) | 500 mm |
| Measurement range (MR) | 1500 mm |
| Depth image detection accuracy | X, Y: 5 mm @ 1 m; 10 mm @ 2 m; Z: 5 mm @ 1 m; 10 mm @ 2 m |
| Color image detection accuracy | X, Y: 2.6 mm @ 1 m; 5.5 mm @ 2 m |
| Scan frame rate | 12 fps @ high precision mode |
| Data type | Original image (mono and color images), depth image, volume information |
| Laser safety class | Class 1 |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9 W @ 24 VDC |
| Dimension | 200 mm × 47 mm × 100 mm (7.9" × 1.9" × 3.9") |
| Weight | Approx. 1 kg (2.2 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | HiViewer |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.50 kg |
