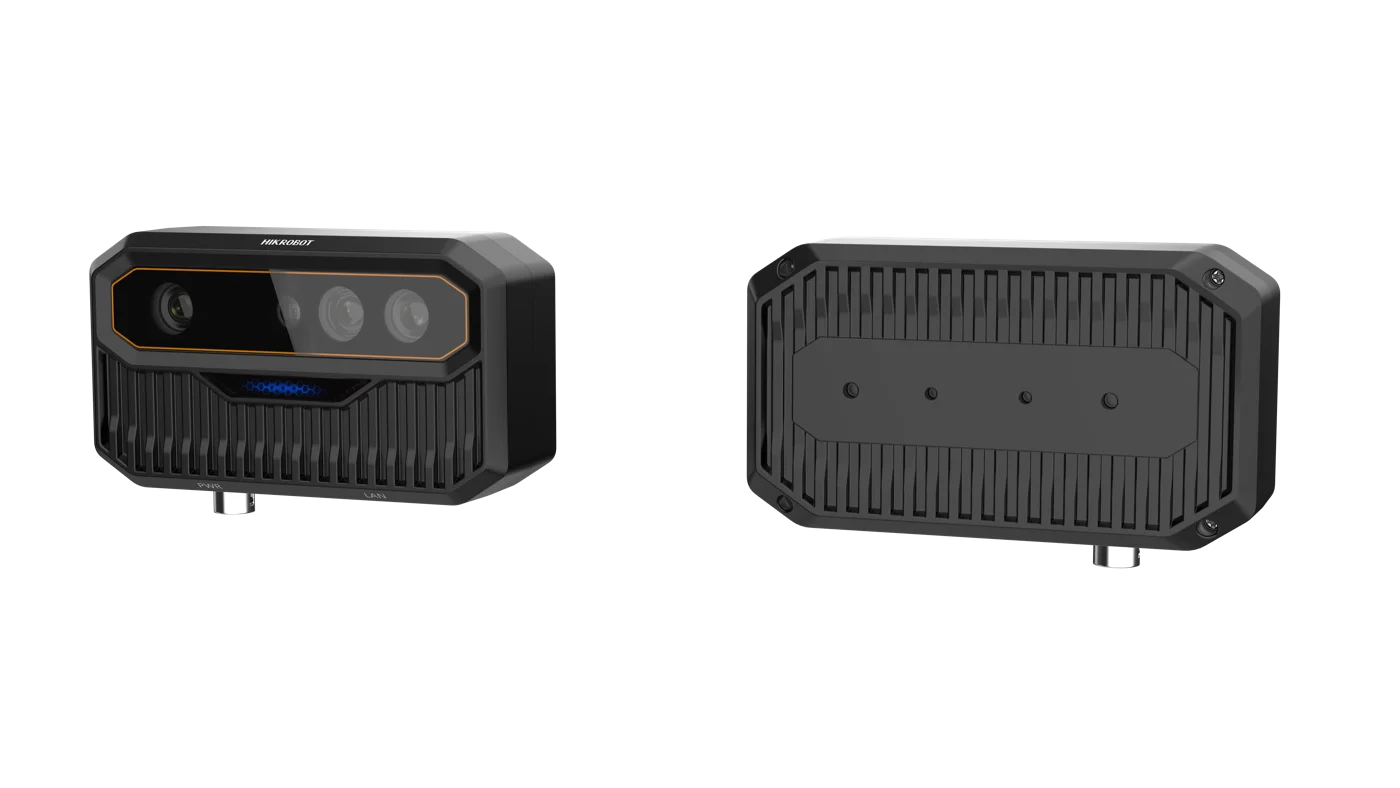

Hikrobot MV-DB300S-V Single-DOE speckle structured-light stereo camera (small-item volume measurement)
Model MV-DB300S-V
Hikrobot MV-DB300S-V Single-DOE speckle structured-light stereo camera. High-performance sensor with an energy-efficient laser module delivers stable, efficient depth maps with millimeter accuracy AI hardware core supports custom deep-learning models
Datasheet (PDF, Chinese) - MV-DB300S-VUser manual (PDF, Chinese) - MV-DB300S-VCAD: 3D STEP + 2D DXF (ZIP) - MV-DB300S-V
Features
- High-performance sensor with an energy-efficient laser module delivers stable, efficient depth maps with millimeter accuracy
- AI hardware core supports custom deep-learning models
- Factory-calibrated intrinsics and multi-platform SDK for fast, easy secondary development
- Compact size and flexible mounting for many applications
- Narrow-band filter resists ambient light interference
- Gigabit Ethernet interface for a stable, reliable link
Specifications
| Model | MV-DB300S-V |
|---|---|
| Brand | Hikrobot |
| Near field of view | 325 mm × 320 mm |
| Far field of view | 1850 mm × 1600 mm |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 1200 mm |
| Depth image detection accuracy | X, Y:5 mm@1 m; 10 mm@2 m; Z:10 mm@1 m; 20 mm@2 m |
| Color image detection accuracy | X, Y:2.6 mm@1 m; 5.5 mm@ 2 m |
| Scan frame rate | Depth map: max 17 fps @ 1280 × 1024; RGB image: max 17 fps @ 1536 × 1280; Depth + RGBD synchronized output: max 14 fps @ 1280 × 1024 |
| Data type | Raw image (mono + color), Rectified images (left/right), Depth map |
| Laser safety class | Class 1 |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 6-pin M8 circular connector provides power and I/O, 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 configurable I/O (Line 2) |
| Power supply | 12 ~ 24 VDC |
| Power consumption | 5.5 W@12 VDC |
| Dimension | 98.5 mm × 55.5 mm × 33 mm |
| Weight | Approx. 200 g |
| Ingress protection | IP40 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Client software | HiViewer |
| Operating system | Windows 7/10/11 32/64bits |
| Shipping weight (estimated) | 0.38 kg |
