3D sensors

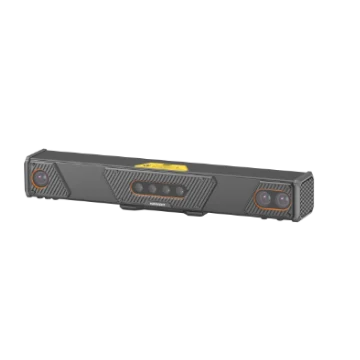

Hikrobot MV-DB1300A-V V2.0 Multi-DOE speckle structured-light 3D camera (volume measurement)
Model MV-DB1300A-V V2.0
Hikrobot MV-DB1300A-V V2.0 Multi-DOE speckle structured-light 3D camera. Custom optical system with built-in high-precision depth fusion algorithm for excellent image quality Multiple exposure modes and narrow-band filter for greater environmental adaptability
Datasheet (PDF, Chinese) - MV-DB1300A-V V2.0User manual (PDF, Chinese) - MV-DB1300A-V V2.0CAD: 3D STEP + 2D DXF (ZIP) - MV-DB1300A-V V2.0
Features
- Custom optical system with built-in high-precision depth fusion algorithm for excellent image quality
- Multiple exposure modes and narrow-band filter for greater environmental adaptability
- High-strength carbon-fiber design with IP65 protection for high stability
- Extra-large field of view and depth of field, optimized for large-item volume measurement
Specifications
| Model | MV-DB1300A-V V2.0 |
|---|---|
| Brand | Hikrobot |
| Near field of view | 870 mm × 860 mm@1100 mm |
| Typical field of view | 2000 mm × 1600 mm@2100 mm |
| Far field of view | 3340 mm× 2500 mm@3200 mm |
| Clearance distance (CD) | 1100 mm |
| Measurement range (MR) | 2100 mm |
| Repeatability (Z-axis)* | 1.5 mm@2100 mm |
| Resolution | 3072 × 2048 @ RGB image; 1536 × 1024 @ depth map |
| Image output latency | 1.4 s ~ 1.7 s @ volume measurement mode |
| Data type | Raw image (mono + color), Depth map, RGB-D image, Volume data |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 24 VDC |
| Power consumption | 10 W@24 VDC |
| Dimension | 507 mm × 79.8 mm × 99.9 mm |
| Weight | 1.59 kg |
| Ingress protection | IP65 |
| Temperature | Operating temperature: 0°C to 45°C, Storage temp.: -30 °C to 80 °C |
| Humidity | 20% RH to 85% RH (no condensation) |
| Laser safety class | CLASS 3R |
| Wavelength | 850 nm |
| Client software | HiViewer, Volume measurement software |
| Operating system | 32/64-bit Windows 7/10 |
| Certification | RoHS |
| Shipping weight (estimated) | 2.33 kg |
