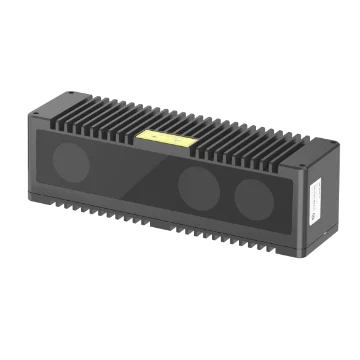

Hikrobot MV-DB700S-C RGB-D smart stereo camera (low-clearance EDP)
Model MV-DB700S-C
Hikrobot MV-DB700S-C RGB-D smart stereo camera. Built-in deep-learning and 3D image processing algorithms for more accurate results Extra-wide field of view for applications with limited working distance, such as cross-belt sorter lower decks
Datasheet (PDF, Chinese) - MV-DB700S-CUser manual (PDF, Chinese) - MV-DB700S-CCAD: 3D STEP + 2D DXF (ZIP) - MV-DB700S-C
Features
- Built-in deep-learning and 3D image processing algorithms for more accurate results
- Extra-wide field of view for applications with limited working distance, such as cross-belt sorter lower decks
- Energy-efficient laser module with precise exposure synchronization: wide dynamic range and more stable performance
- Narrow-band filter for stronger interference resistance
- Factory-calibrated intrinsics and one-click single-camera system calibration for easy deployment
- IP65 rating: industrial-grade dust and water protection
Specifications
| Model | MV-DB700S-C |
|---|---|
| Brand | Hikrobot |
| Near field of view | 590 mm × 470 mm |
| Far field of view | 2200 mm × 1500 mm |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 700 mm |
| Object detection range | At 500 mm mounting height: 50 mm × 50 mm × 10 mm to 450 mm × 450 mm × 200 mm |
| Depth image detection accuracy | Z:2.5 [email protected] m; 5 mm@1 m |
| Scan frame rate | 23 fps@EDP mode |
| Resolution | Depth:1408 × 1024 @ 30 fps; RGB:1536 × 1280 @ 30 fps |
| Data type | Raw image (mono + color), Depth map, EDP detection results |
| Laser safety class | Class 1 |
| Data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | 12-pin M12 interface provides I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Power supply | 12~24 VDC |
| Power consumption | 9W@24 VDC |
| Dimension | 184 mm × 55 mm × 53 mm |
| Weight | Approx. 1 kg (2.2 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Client software | HiViewer |
| Operating system | Windows 7/10/11 32/64bits, Windows 11 64bits |
| Certification | KC, CE |
| Shipping weight (estimated) | 1.50 kg |
