Machine vision lenses

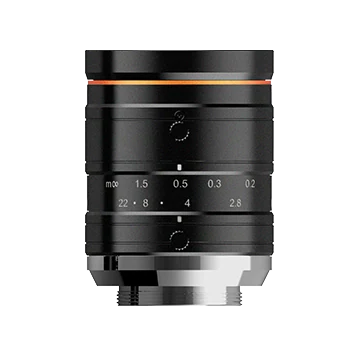

Fixed focal length, Manual iris, 12 MP, FA lens (LS-XAC-3512F)
Model LS-XAC-3512F
Fixed focal length, Manual iris, 12 MP, FA lens. High resolution with highly consistent sharpness across the image Low distortion
Features
- High resolution with highly consistent sharpness across the image
- Low distortion
- Very high relative illumination
- Excellent optical performance at all object distances
Specifications
| Model | LS-XAC-3512F |
|---|---|
| Focal length | 35 mm |
| F-number | F2.8 ~ F22 |
| Image size | Φ17.6 mm(1.1'') |
| Distortion | 0.02% |
| Minimum object distance | 0.2 m |
| Field of view | D (17.52 mm): 28.3°; H (14.14 mm): 22.6°; V (10.35 mm): 17° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5×0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ38×47.6 mm |
| Weight | 107 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.25 kg |
