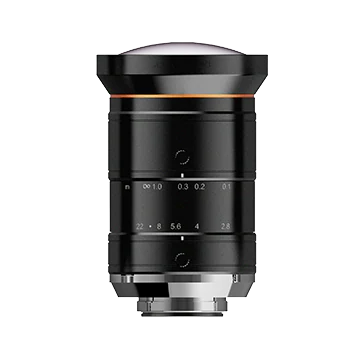

12mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF1228M-12MPE)

Machine vision lenses

12mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF1228M-12MPE)

Model LS-KF1228M-12MPE

12mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion

Datasheet (PDF) - LS-KF1228M-12MPE 3D model (STEP, ZIP) - LS-KF1228M-12MPE

Features

Ultra high resolution and consistency of image clarity
Lower distortion
Super high image peripheral brightness ratio
Excellent optical properties are maintained at different object distances

Specifications

Model	LS-KF1228M-12MPE
Focal length	12 mm
F-number	F2.8 to F22
Image size	Ø17.6 mm (1.1")
Distortion	1.5%
Minimum object distance	0.1 m
Field of view	D (17.52 mm): 66.7°; H (14.14 mm): 57°; V (10.35 mm): 45°
Iris control	Manual
Focus control	Manual
Mount	C-mount
Flange back length	17.526 mm
Dimension	Ø48 mm × 71.32 mm (Ø1.9" x 2.8")
Weight	245 g (0.5 lb.)
Temperature	–10 °C to 50 °C (14 °F to 122 °F)
Certification	RoHS 2.0
Shipping weight (estimated)	0.44 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the KF-E series lenses series

Model	Size	Price	Availability
LS-KF1628M-12MPE		Price on request	3 in stock	View
LS-KF0814M-12MPE		Price on request	2 in stock	View
LS-KF2528M-12MPE		Price on request	3 in stock	View
LS-KF3528M-12MPE		Price on request	3 in stock	View
LS-KF5028M-12MPE		Price on request	2 in stock	View
LS-KF0618M-12MPE		$339.00	2 in stock	View
