Machine vision lenses

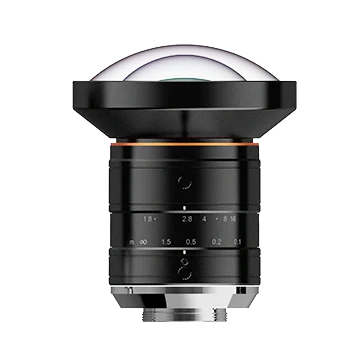

6mm, F1.8, 1.1", 12MP Lens, C-Mount (LS-KF0618M-12MPE)
Model LS-KF0618M-12MPE
6mm, F1.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion
Features
- Ultra high resolution and consistency of image clarity
- Lower distortion
- Super high image peripheral brightness ratio
- Excellent optical properties are maintained at different object distances
Specifications
| Model | LS-KF0618M-12MPE |
|---|---|
| Focal length | 6 mm |
| F-number | F1.8 to F16 |
| Image size | Ø17.6 mm (1.1") |
| Distortion | 2.5% |
| Minimum object distance | 0.1 m |
| Field of view | D (17.52 mm): 118.2°; H (14.14 mm): 104.9°; V (10.35 mm): 86.2° |
| Iris control | Manual |
| Focus control | Manual |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø66 mm × 77.8 mm (Ø2.6" x 3.1") |
| Weight | 353 g (0.8 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.59 kg |
