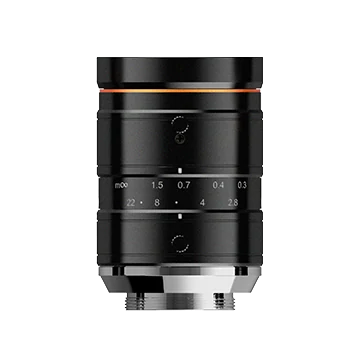

50mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF5028M-12MPE)

Machine vision lenses

50mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF5028M-12MPE)

Model LS-KF5028M-12MPE

50mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Lower distortion

Datasheet (PDF) - LS-KF5028M-12MPE 3D model (STEP, ZIP) - LS-KF5028M-12MPE

Features

Ultra high resolution and consistency of image clarity
Lower distortion
Super high image peripheral brightness ratio
Excellent optical properties are maintained at different object distances

Specifications

Model	LS-KF5028M-12MPE
Focal length	50 mm
F-number	F2.8 to F22
Image size	Ø17.6 mm (1.1")
Distortion	0.04%
Minimum object distance	0.3 m
Field of view	D (17.52 mm): 19.9°; H (14.14 mm): 15.9°; V (10.35 mm): 11.9°
Iris control	Manual
Focus control	Manual
Filter thread	M35.5 × 0.5
Mount	C-mount
Flange back length	17.526 mm
Dimension	Ø38 mm × 53.9 mm (Ø1.5" x 2.1")
Weight	121 g (0.3 lb.)
Temperature	–10°C to 50°C (14 °F to 122 °F)
Certification	RoHS 2.0
Shipping weight (estimated)	0.27 kg

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the KF-E series lenses series

Model	Size	Price	Availability
LS-KF1628M-12MPE		Price on request	3 in stock	View
LS-KF0814M-12MPE		Price on request	2 in stock	View
LS-KF1228M-12MPE		Price on request	5 in stock	View
LS-KF2528M-12MPE		Price on request	3 in stock	View
LS-KF3528M-12MPE		Price on request	3 in stock	View
LS-KF0618M-12MPE		$339.00	2 in stock	View
