Machine vision lenses

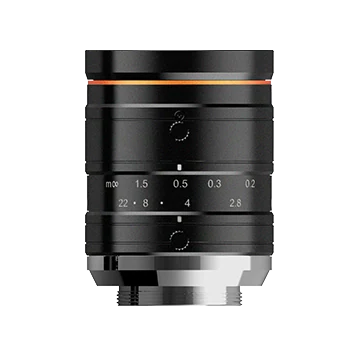

35mm, F2.8, 1.1", 12MP Lens, C-Mount (LS-KF3528M-12MPE)
Model LS-KF3528M-12MPE
35mm, F2.8, 1.1", 12MP Lens, C-Mount. Ultra high resolution and consistency of image clarity Super high image peripheral brightness ratio
Features
- Ultra high resolution and consistency of image clarity
- Super high image peripheral brightness ratio
- Lower distortion
- Excellent optical properties are maintained at different object distances
Specifications
| Model | LS-KF3528M-12MPE |
|---|---|
| Focal length | 35 mm |
| F-number | F2.8 to F22 |
| Image size | Ø17.6 mm (1.1") |
| Distortion | 0.02% |
| Minimum object distance | 0.2 m |
| Field of view | D (17.52 mm): 28.3°; H (14.14 mm): 22.6°; V (10.35 mm): 17° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange back length | 17.526 mm |
| Dimension | Ø38 mm × 47.6 mm (Ø1.5" x 1.9") |
| Weight | 107 g (0.2 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.25 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the KF-E series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF1628M-12MPE | Price on request | 3 in stock | View | |
| LS-KF0814M-12MPE | Price on request | 2 in stock | View | |
| LS-KF1228M-12MPE | Price on request | 5 in stock | View | |
| LS-KF2528M-12MPE | Price on request | 3 in stock | View | |
| LS-KF5028M-12MPE | Price on request | 2 in stock | View | |
| LS-KF0618M-12MPE | $339.00 | 2 in stock | View |
