Machine vision lenses

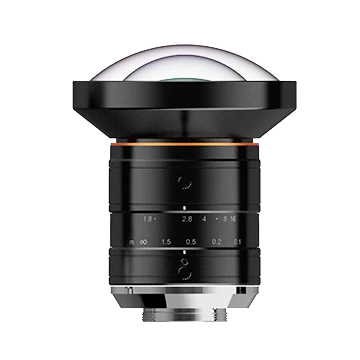

1.1" 6 mm 12 MP FA lens (LS-ML-MF35-5MPE)
Model LS-ML-MF35-5MPE
1.1" 6 mm 12 MP FA lens. High resolution with highly consistent sharpness across the image Low distortion
Features
- High resolution with highly consistent sharpness across the image
- Low distortion
- Very high relative illumination
- Excellent optical performance at all object distances
Specifications
| Model | LS-ML-MF35-5MPE |
|---|---|
| Focal length | 6 mm |
| F-number | F1.8 ~ F16 |
| Image size | Φ17.6 mm(1.1'') |
| Distortion | 2.5% |
| Minimum object distance | 0.1 m |
| Field of view | D(17.52mm):118.2°; H(14.14mm):104.9°; V(10.35mm):86.2° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |
| Dimension | Φ66×77.8 mm |
| Weight | 353 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.59 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the KF-E series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-KF1628M-12MPE | Price on request | 3 in stock | View | |
| LS-KF0814M-12MPE | Price on request | 2 in stock | View | |
| LS-KF1228M-12MPE | Price on request | 5 in stock | View | |
| LS-KF2528M-12MPE | Price on request | 3 in stock | View | |
| LS-KF3528M-12MPE | Price on request | 3 in stock | View | |
| LS-KF5028M-12MPE | Price on request | 2 in stock | View | |
| LS-XAC-3512F | $309.00 | 4 in stock | View | |
| LS-KF0618M-12MPE | $339.00 | 2 in stock | View |
