CCTV lenses

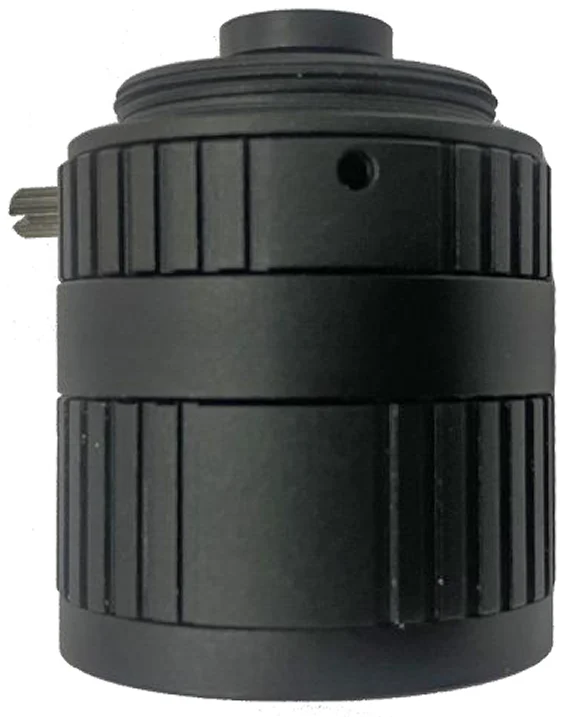

3.5-11 mm, 1/1.7", 6 MP, C-mount Varifocal CCTV Lens (LS-SVD3511MIR-6M)
Model LS-SVD3511MIR-6M
3.5-11 mm, 1/1.7", 6 MP, C-mount Varifocal CCTV Lens. 3.5-11 mm 1/1.7" 6 MP C-mount IR varifocal lens, DC iris. At a glance: focal length 3.5-11 mm; format 1/1.7"; resolution 6 Megapixel; aperture F1.6 DC Iris; mount C.
Features
- 6 megapixel high definition
- 1/1.8" large sensor format
- C mount
Specifications
| Model | LS-SVD3511MIR-6M |
|---|---|
| Resolution | 6 Megapixel |
| IR correction | IR |
| Format | 1/1.7" |
| Focal length | 3.5-11 mm |
| Aperture | F1.6 DC Iris |
| Angle of view (1/1.7", DxHxV) | W 152 x 104 x 74 | T 54 x 43 x 32 deg |
| Angle of view (1/2.5", DxHxV) | W 104 x 81 x 59 | T 44 x 35 x 26 deg |
| Angle of view (1/3", DxHxV) | W 86 x 65 x 48 | T 36 x 29 x 22 deg |
| Distortion | 75% (W) ~ -8.5% (T) |
| M.O.D. | 0.5 m (W) ~ 1.5 m (T) |
| Size | dia. 32.5 x 41.92 mm |
| B.F.L. | 8.81 mm |
| Mount | C |
| Weight | 75 g |
| Notes | 20°~+70°; 430~850 nm coating |
| Shipping weight (estimated) | 0.20 kg |
Applications
- Rooms
- Corridors
- Banks
- Building surveillance
