CCTV lenses

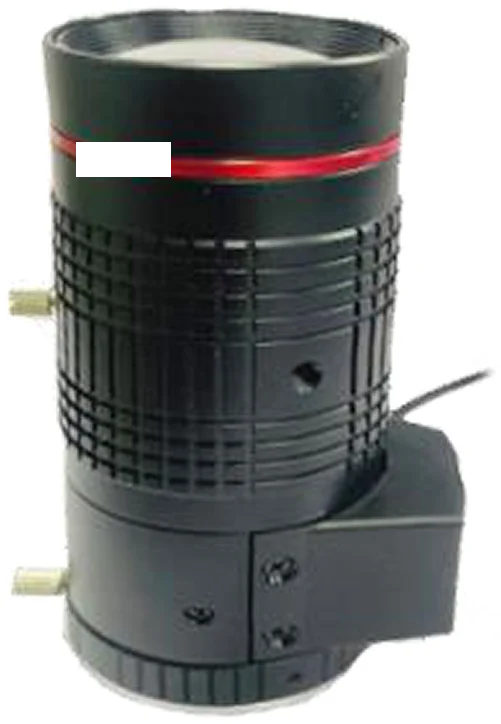

30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens (LS-SVD30120IRY-5M)
Model LS-SVD30120IRY-5M
30-120 mm, 1/2", 5 MP, CS-mount Varifocal CCTV Lens. 30-120 mm 1/2" 5 MP CS-mount IR varifocal lens, DC iris. At a glance: focal length 30-120 mm; format 1/2"; resolution 5 Megapixel; aperture F1.8 DC Iris; mount CS.
Features
- 5 megapixel high definition
- 1/2" large sensor format
- CS mount
Specifications
| Model | LS-SVD30120IRY-5M |
|---|---|
| Resolution | 5 Megapixel |
| IR correction | IR |
| Format | 1/2" |
| Focal length | 30-120 mm |
| Aperture | F1.8 DC Iris |
| Angle of view (1/1.7", DxHxV) | W 18.9 x 15 x 11 | T 3.9 x 3.3 x 1.9 deg |
| Distortion | 3.0% (W) ~ 1.3% (T) |
| M.O.D. | 0.2 m (W) ~ 1 m (T) |
| Size | dia. 37 x 89.95 mm |
| B.F.L. | 7.5 mm |
| Mount | CS |
| Weight | 300 g |
| Notes | 20°~+70°; 430~650 nm & 850 coating |
| Shipping weight (estimated) | 0.52 kg |
Applications
- ITS
- Highways
- Railways
- Building surveillance
