CCTV lenses

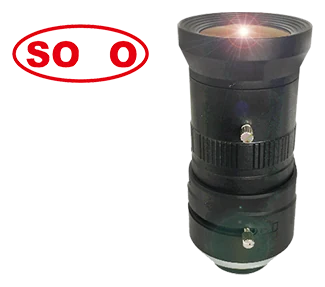

8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens (LS-SVM0850IR-3M)
Model LS-SVM0850IR-3M
8-50 mm, 1/1.8", 3 MP, C-mount Varifocal CCTV Lens. An 8-50 mm F1.6 manual-iris varifocal lens for 1/1.8" 3-megapixel cameras with IR correction, for metro, smart city, ITS, toll gate and highway use. At a glance: focal length 8-50mm; format 1/1.8"; resolution 3.0 Megapixel; aperture F1.6 Manual Iris; mount C.
Features
- High resolution: 3.0 megapixel cover all 3MP,1080P
- Large format: 1/1.8" size covering 1/1.8", 1/2"camera
- IR correction: 24h day & night vision
- Long focal length: 8-50mm focal length covering 10-50mm & 12-36mm, 10-40mm
Specifications
| Model | LS-SVM0850IR-3M |
|---|---|
| Resolution | 3.0 Megapixel |
| IR corrected | IR |
| Format | 1/1.8" |
| Focal length | 8-50mm |
| Aperture | F1.6 Manual Iris |
| Angle of view (1/1.8" 16:9) | 60 x 50 x 27 deg |
| Angle of view (1/1.8" 4:3) | 60 x 45 x 33 deg |
| M.O.D. | 0.3m |
| Size | dia. 50x90.4mm |
| Distortion | 19.2%~-0.9% |
| Mechanical back focal length | 8.72~11.46mm |
| Mount | C |
| Weight | 460g |
| Shipping weight (estimated) | 0.74 kg |
Applications
- All metro
- smart city
- ITS
- toll gate
- park
- highway
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
