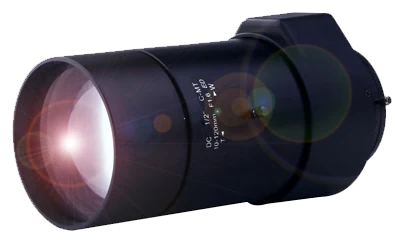

10-120 mm, 1/2", 1.3 MP, C-mount Varifocal CCTV Lens (LS-SVD10120IR-M)

CCTV lenses

10-120 mm, 1/2", 1.3 MP, C-mount Varifocal CCTV Lens (LS-SVD10120IR-M)

Model LS-SVD10120IR-M

10-120 mm, 1/2", 1.3 MP, C-mount Varifocal CCTV Lens. 1.3 megapixel 10-120 mm varifocal lens with a 1/2" format covering 1/2", 1/2.5", 1/2.7" and 1/3" cameras. IR-corrected for 24 h day and night; the long focal length suits traffic surveillance. At a glance: focal length 10-120 mm; format 1/2"; resolution 1.3 Megapixel; aperture F1.6 DC Iris; mount C.

$39.00 USDIn stock · 2 available

Inventory updated Oct 14, 2026

0.59 kg shipping weight · Ships in 2-3 weeks
  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • Resolution: 1.3 megapixel
  • IR correction: 24h day & night vision
  • Large format: 1/2" format can cover 1/2", 1/2.5", 1/2.7", 1/3" camera
  • Long focal length: 10-120 mm focal length makes traffic surveillance better.

Specifications

ModelLS-SVD10120IR-M
Focal length10-120 mm
IR correctionIR
Format1/2"
ApertureF1.6 DC Iris
Angle of view (1/2")34.7-26.4 deg
M.O.D.1.5 m
Sizedia. 123.2 x 59.8 x 62.0
MountC
Weight350 g
Resolution1.3 Megapixel
Shipping weight (estimated)0.59 kg

Applications

  • Traffic
  • ITS
  • Highways
  • Exits / entrances
Complete the station

Drive the light from a light controller and pair it with a lens for your field of view and working distance.

Light controllers LensesSelection guide

Other sizes in the Varifocal CCTV lenses series

ModelSizePriceAvailability
LS-S23VM0721IRF-3M7-21 mm, 2/3", 3 MP, C-mount $39.00 2 in stockView
LS-SBV0550DIR-2M5-50 mm, 1/3", 2 MP, D14-mount $39.00 4 in stockView
LS-SBV0550IR-3M5-50 mm, 1/2.7", 3 MP, D14-mount $39.00 2 in stockView
LS-SBV3610IR-6M3.6-10 mm, 1/1.8", 6 MP, D14-mount $39.00 5 in stockView
LS-SGF2575-3M2.5-7.5 mm, 1/3", 3 MP, CS-mount $39.00 3 in stockView
LS-SVD0415C-3M4-15 mm, 1/1.8", 3 MP, C-mount $39.00 2 in stockView
LS-SVD0416-3M4-16 mm, 1/1.8", 3 MP, C-mount $39.00 3 in stockView
LS-SVD0550IR-3M5-50 mm, 1/2.7", 3 MP, CS-mount $39.00 3 in stockView
LS-SVD0550IR-6M5-50 mm, 1/2.7", 6 MP, CS-mount $39.00 5 in stockView
LS-SVD0622IR-5M6-22 mm, 1/2.5", 5 MP, CS-mount $39.00 5 in stockView
LS-SVD0770-3M7-70 mm, 1/1.8", 3 MP, C-mount $39.00 2 in stockView
LS-SVD0850XIR-3M8-50 mm, 1/1.8", 3 MP, C-mount $39.00 3 in stockView
LS-SVD1050-3M10-50 mm, 1/2.7", 3 MP, CS-mount $39.00 5 in stockView
LS-SVD1050IR-5M10-50 mm, 1/1.7", 5 MP, CS-mount $39.00 5 in stockView
LS-SVD12120-3M12-120 mm, 1/1.8", 3 MP, C-mount $39.00 2 in stockView
LS-SVD2613IR-M2.6-13 mm, 1/3", 1.3 MP, CS-mount $39.00 2 in stockView
LS-SVD2712-3M2.7-12 mm, 1/2.7", 3 MP, CS-mount $39.00 4 in stockView
LS-SVD2812IR-4M2.8-12 mm, 1/2.7", 4 MP, CS-mount $39.00 4 in stockView
LS-SVD2812IR-5M2.8-12 mm, 1/2.7", 5 MP, CS-mount $39.00 5 in stockView
LS-SVD2908IR-M2.9-8 mm, 1/3", 1.3 MP, CS-mount $39.00 3 in stockView
LS-SVD3610IR-6M3.6-10 mm, 1/1.8", 6 MP, CS-mount $39.00 5 in stockView
LS-SVD3818IR-3M3.8-18 mm, 1/1.8", 3 MP, C-mount $39.00 3 in stockView
LS-SVD61514IR-3M6-15 mm, 2/3", 3 MP, C-mount $39.00 2 in stockView
LS-SVD6520IR-3M6.5-20 mm, 2/3", 3 MP, C-mount $39.00 4 in stockView

See all 61 models in the Varifocal CCTV lenses series
