6-60 mm, 1/3", CS-mount Varifocal CCTV Lens (LS-SVM0660)
Model LS-SVM0660
6-60 mm, 1/3", CS-mount Varifocal CCTV Lens. 6-60 mm 1/3" CS-mount varifocal lens, manual iris. At a glance: focal length 6-60 mm; format 1/3; resolution High resolution; aperture type Manual Iris; mount CS.
Features
- High resolution
- 1/3" sensor
- CS mount
- Manual iris
Specifications
| Model | LS-SVM0660 |
|---|---|
| Resolution | High resolution |
| Format | 1/3 |
| Focal length | 6-60 mm |
| Aperture type | Manual Iris |
| Aperture | F1.6-C |
| Angle of view (1/3", HxV) | 46.2 x 34.6 deg |
| M.O.D. | 0.3 m |
| Size | dia. 37 x 74.5 mm |
| T.T.L. | 78.83 mm |
| Mount | CS |
| Weight | 160 g |
| Elements | 12G |
| Shipping weight (estimated) | 0.32 kg |

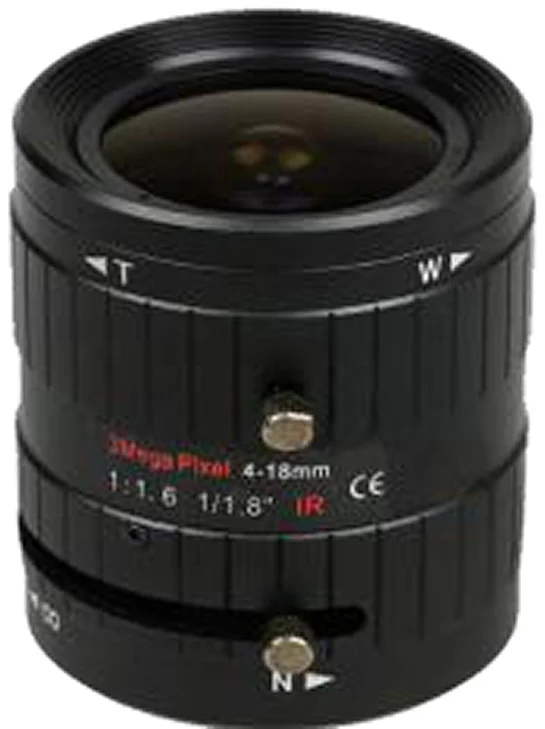

Photo shows a representative model of this series; see the specifications for this model.
