CCTV lenses

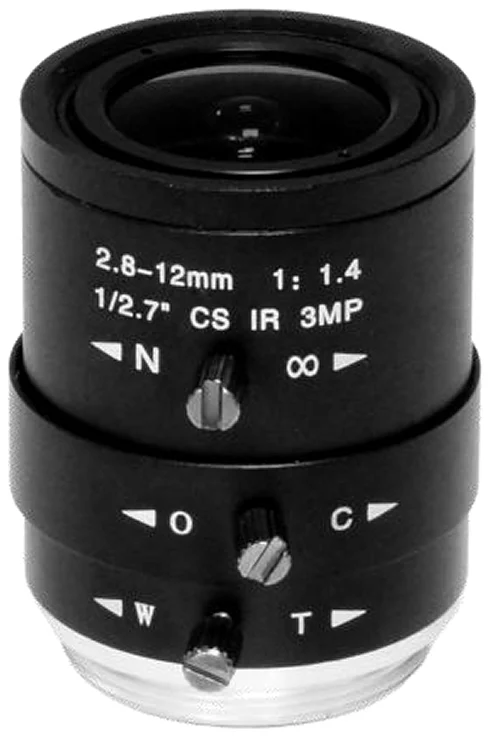

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens (LS-SVM2812IR-3MS)
Model LS-SVM2812IR-3MS
2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 2.8-12 mm 1/2.7" 3 MP CS-mount IR varifocal lens, manual iris. At a glance: focal length 2.8-12 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 Manual Iris; mount CS.
Features
- 3.0 megapixel, suits most 1080P cameras
- Wide focal range 2.8-12 mm
- IR correction for 24-hour surveillance
Specifications
| Model | LS-SVM2812IR-3MS |
|---|---|
| Resolution | 3.0 Megapixel |
| IR correction | IR |
| Format | 1/2.7" |
| Focal length | 2.8-12 mm |
| Aperture | F1.4 Manual Iris |
| Angle of view (1/2.7", HxV) | 112 x 34 deg |
| M.O.D. | 0.3 m |
| Size | dia. 31.5 x 37.5 mm |
| Mount | CS |
| Weight | 53 g |
| Elements | 9G |
| Shipping weight (estimated) | 0.17 kg |
Applications
- Metro
- Banks
- Road traffic
- Buildings and residential communities
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the Varifocal CCTV lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-SVM0412IR-2M | 4-12 mm, 1/2", 2 MP, C-mount | $39.00 | 5 in stock | View |
| LS-SVM0418IR-3M | 4-18 mm, 1/1.8", 3 MP, C-mount | $39.00 | 3 in stock | View |
| LS-SVM0550IR-3M | 5-50 mm, 1/2.7", 3 MP, CS-mount | $39.00 | 2 in stock | View |
| LS-SVM0550IR-3MS | 5-50 mm, 1/2.5", 3 MP, C-mount | $39.00 | 5 in stock | View |
| LS-SVM0660 | 6-60 mm, 1/3", CS-mount | $39.00 | 2 in stock | View |
| LS-SVM0850IR-3M | 8-50 mm, 1/1.8", 3 MP, C-mount | $39.00 | 3 in stock | View |
| LS-SVM1040IR-3M | 10-40 mm, 1/2.5", 3 MP, C-mount | $39.00 | 5 in stock | View |
| LS-SVM1050IR-5M | 10-50 mm, 1/1.7", 5 MP, CS-mount | $39.00 | 5 in stock | View |
| LS-SVM12120-3M | 12-120 mm, 1/1.8", 3 MP, C-mount | $39.00 | 4 in stock | View |
| LS-SVM1240IR-3M | 12-40 mm, 1/1.8", 3 MP, CS-mount | $39.00 | 2 in stock | View |
| LS-SVM15180-3MS | 15-180 mm, 1/1.8", C-mount | Price on request | 4 in stock | View |
| LS-SVM1648-3M | 16-48 mm, 2/3", 3 MP, C-mount | $39.00 | 4 in stock | View |
| LS-SVM2812JIR-5M | 2.8-12 mm, 1/2.7", 5 MP, CS-mount | $39.00 | 4 in stock | View |
| LS-SVM3818XIR-3M | 3.8-18 mm, 1/1.8", 3 MP, C-mount | $39.00 | 4 in stock | View |
| LS-SVM6515IR-3M | 6-15.5 mm, 2/3", 3 MP, C-mount | $39.00 | 4 in stock | View |
| LS-SVP0550PIR-4M | 5-50 mm, 1/2.7", 4 MP, CS-mount | $39.00 | 5 in stock | View |
| LS-S11VP1540IR-12M | 15-40 mm, 1.1", 12 MP, C-mount | $69.00 | 2 in stock | View |
| LS-S1VD1040IR-12M | 10-40 mm, 1", 12 MP, C-mount | $69.00 | 2 in stock | View |
| LS-S1VM1040IR-12M | 10-40 mm, 1", 12 MP, C-mount | $69.00 | 4 in stock | View |
| LS-S1VP1040IR-12M | 10-40 mm, 1", 12 MP, C-mount | $69.00 | 3 in stock | View |
| LS-SVD0825IR-8M | 8-25 mm, 1/1.7", 8 MP, CS-mount | $69.00 | 3 in stock | View |
| LS-SVD1050MIR-12M | 10-50 mm, 1/1.7", 12 MP, C-mount | $69.00 | 5 in stock | View |
| LS-SVD1150IR-8M | 11-50 mm, 1/1.7", 8 MP, CS-mount | $69.00 | 5 in stock | View |
| LS-SVD1575IR-12M | 15-75 mm, 1/1.7", 12 MP, C-mount | $69.00 | 4 in stock | View |
