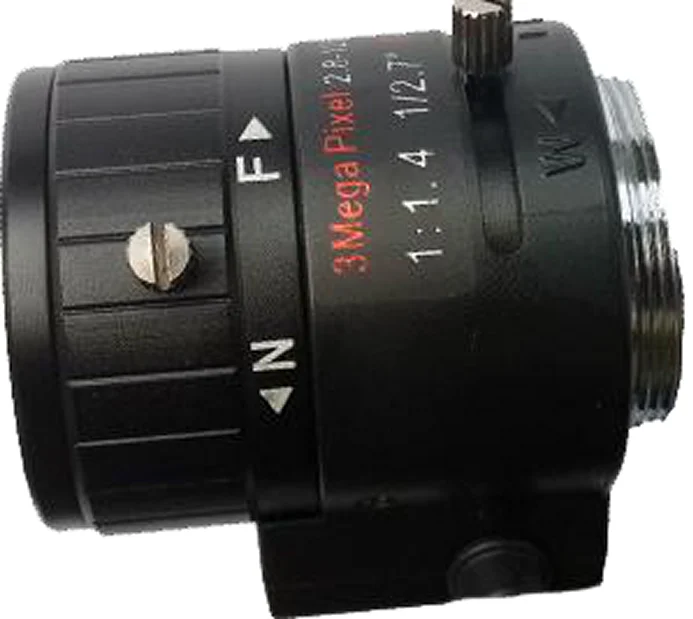

2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens (LS-SVD2812IR-3M)
Model LS-SVD2812IR-3M
2.8-12 mm, 1/2.7", 3 MP, CS-mount Varifocal CCTV Lens. 2.8-12 mm 1/2.7" 3 MP CS-mount IR varifocal lens, DC iris. At a glance: focal length 2.8-12 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.4 DC Iris; mount CS.
Features
- 3.0 megapixel, suits most 1080P cameras
- Wide focal range 2.8-12 mm
- IR correction for 24-hour surveillance
Specifications
| Model | LS-SVD2812IR-3M |
|---|---|
| Resolution | 3.0 Megapixel |
| IR correction | IR |
| Format | 1/2.7" |
| Focal length | 2.8-12 mm |
| Aperture | F1.4 DC Iris |
| Angle of view (1/2.7") | 98 x 28 deg |
| M.O.D. | 0.2 m |
| Size | dia. 33 x 43.2 |
| Mount | CS |
| Weight | 80 g |
| Shipping weight (estimated) | 0.21 kg |
Applications
- Metro
- Banks
- Road traffic
- Buildings and residential communities
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
