CCTV lenses

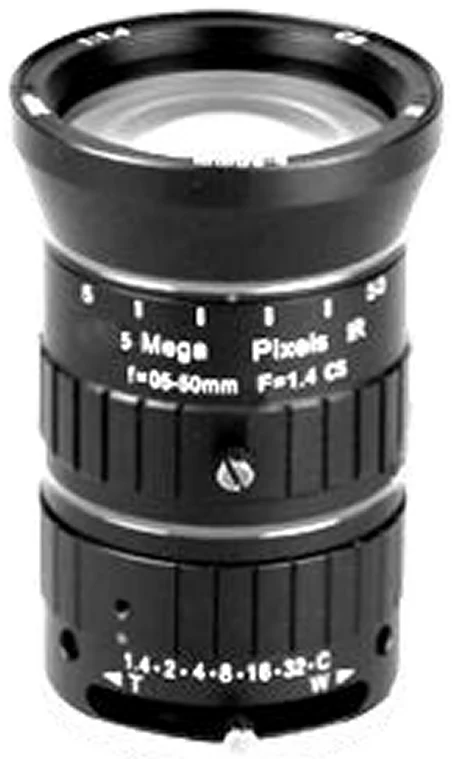

5-50 mm, 1/2.7", 5 MP, CS-mount Varifocal CCTV Lens (LS-SVD0550IR-5M)
Model LS-SVD0550IR-5M
5-50 mm, 1/2.7", 5 MP, CS-mount Varifocal CCTV Lens. 5-50 mm 1/2.7" 5 MP CS-mount IR varifocal lens, DC iris. At a glance: focal length 5-50 mm; format 1/2.7"; resolution 5.0 Megapixel; aperture F1.4 DC Iris; mount CS.
Features
- 5.0 megapixel
- 1/2.7" large format
- IR correction
Specifications
| Model | LS-SVD0550IR-5M |
|---|---|
| Resolution | 5.0 Megapixel |
| IR correction | IR |
| Format | 1/2.7" |
| Focal length | 5-50 mm |
| Aperture | F1.4 DC Iris |
| Angle of view (1/2.7") | 62.6 x 49.1 x 36.5 deg |
| M.O.D. | 0.3 m |
| Size | dia. 37 x 84.5 mm |
| Mount | CS |
| Weight | 180 g |
| Shipping weight (estimated) | 0.35 kg |
Applications
- Gates (entrances/exits)
- Toll stations
- Schools
- Metro
