CCTV lenses

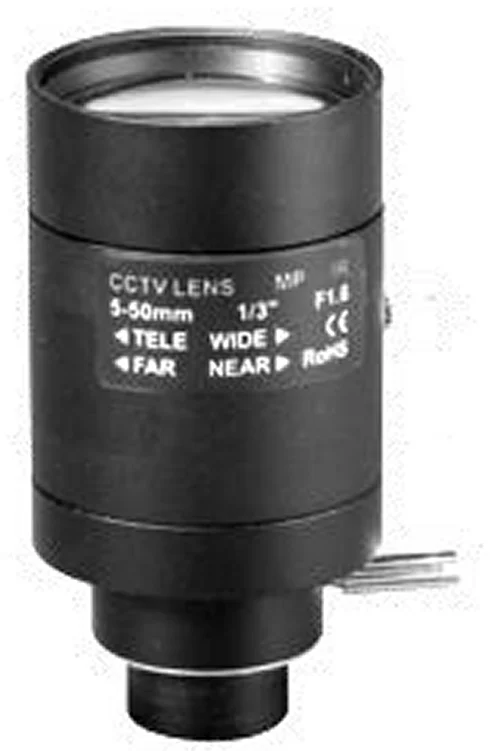

5-50 mm, 1/3", 1.3 MP, D14-mount Varifocal CCTV Lens (LS-SBV0550IR-M)
Model LS-SBV0550IR-M
5-50 mm, 1/3", 1.3 MP, D14-mount Varifocal CCTV Lens. 5-50 mm 1/3" 1.3 MP D14-mount IR varifocal board lens, manual iris. 14)". At a glance: focal length 5-50 mm; format 1/3"; resolution 1.3 Megapixel; aperture type Manual Iris; mount D14.
Features
- 1.3 megapixel
- 1/3" sensor
- D14 plug-in mount
Specifications
| Model | LS-SBV0550IR-M |
|---|---|
| Resolution | 1.3 Megapixel |
| IR correction | IR |
| Format | 1/3" |
| Focal length | 5-50 mm |
| Aperture type | Manual Iris |
| Aperture | F1.6-360 |
| Angle of view (diagonal) | Wide 76° / Tele 8.8° |
| M.O.D. | 0.3 m |
| Size | dia. 30 x 56.3 mm |
| T.T.L. | 61.5 mm |
| Mount | D14 |
| Weight | 200 g |
| Shipping weight (estimated) | 0.38 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
