Telecentric lenses

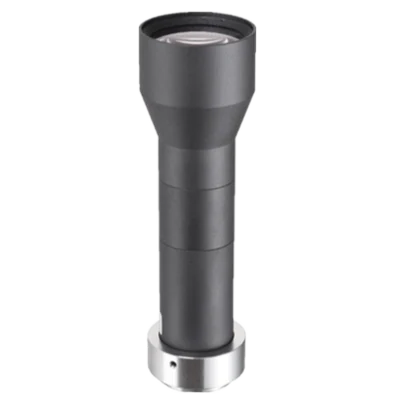

Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3" (LS-MY-05-110-MP)
Model LS-MY-05-110-MP
Object-Side Telecentric Lens, 0.5x, 110 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-05-110-MP |
|---|---|
| Magnification | 0.5 |
| Working distance | 110±2 mm |
| F-number | F9.3 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 2.98 mm |
| Object-side resolution | 12 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Dimension | Φ35 mm × 120.5 mm |
| Weight | 150 g |
| Coaxial light | Not supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
