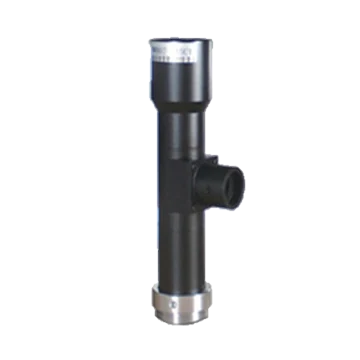

Object-Side Telecentric Lens, 0.8x, 250 mm WD, 2/3", coaxial light port (LS-MY-08-250C-MP)
Model LS-MY-08-250C-MP
Object-Side Telecentric Lens, 0.8x, 250 mm WD, 2/3", coaxial light port. Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-08-250C-MP |
|---|---|
| Magnification | 0.8 |
| Working distance | 250±2 mm |
| F-number | F20 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 2.2 |
| Object-side resolution | 16.8 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Dimension | Φ28 mm × 230.9 mm |
| Weight | 150 g |
| Coaxial light | Supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
