Telecentric lenses

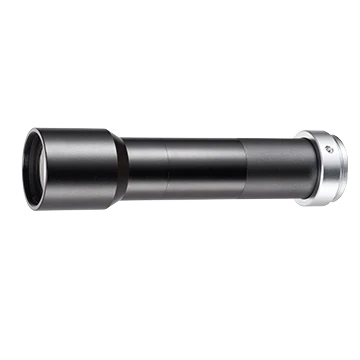

Object-Side Telecentric Lens, 0.7x, 145 mm WD, 2/3" (LS-MY-07-145-MP)
Model LS-MY-07-145-MP
Object-Side Telecentric Lens, 0.7x, 145 mm WD, 2/3". High resolution with highly consistent sharpness across the image Low distortion and high telecentricity, ideal for high-precision measurement and positioning
Features
- High resolution with highly consistent sharpness across the image
- Low distortion and high telecentricity, ideal for high-precision measurement and positioning
- Excellent vibration resistance and stability at high and low temperatures
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-07-145-MP |
|---|---|
| Magnification | 0.7 |
| Working distance | 145±2 mm |
| F-number | F11.2 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 3.2 mm |
| Object-side resolution | 14.3 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Dimension | Φ28 mm × 110.4 mm |
| Weight | 150 g |
| Coaxial light | Not supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MY-2-63 | 2x, 63 mm WD, 2/3" | $729.00 | 4 in stock | View |
| LS-MY-2-63C | 2x, 63 mm WD, 2/3" | $729.00 | 2 in stock | View |
| LS-MY-08-130C-MP | 0.8x, 130 mm WD, 2/3" | $739.00 | 2 in stock | View |
| LS-MY-08-130-MP | 0.8x, 130 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-08-65-MP | 0.8x, 65 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-1-110C-MP | 1x, 110 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-1-110-MP | 1x, 110 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-108 | 1x, 108 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-63 | 1x, 63 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-63C | 1x, 63 mm WD, 2/3" | $739.00 | 3 in stock | View |
| LS-MY-1-108C | 1x, 108 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-08-130G | 0.8x, 130 mm WD, 2/3" | $739.00 | 3 in stock | View |
| LS-MY-08-300 | 0.8x, 300 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145 | 0.7x, 145 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145C | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-07-145C-G | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-07-145G | 0.7x, 145 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-08-180 | 0.8x, 180 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-08-108 | 0.8x, 108 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-136-73C | 1.36x, 73 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-08-108C | 0.8x, 108 mm WD, 2/3" | $789.00 | 2 in stock | View |
| LS-MY-08-250C-MP | 0.8x, 250 mm WD, 2/3" | $809.00 | 3 in stock | View |
| LS-MY-08-250-MP | 0.8x, 250 mm WD, 2/3" | $809.00 | 3 in stock | View |
| LS-MY-07-70 | 0.7x, 70 mm WD, 2/3" | $819.00 | 2 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
