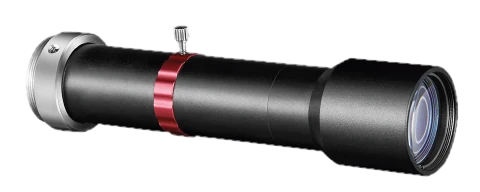

Object-Side Telecentric Lens, 0.8x, 130 mm WD, 2/3" (LS-MY-08-130G)
Model LS-MY-08-130G
Object-Side Telecentric Lens, 0.8x, 130 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MY-08-130G |
|---|---|
| Magnification | 0.8 |
| Working distance | 130 mm |
| F-number | F12.6-32 |
| Image size | Φ11 mm |
| Depth of field | 1.6-4 mm |
| Distortion | ≤0.3% |
| Object-side resolution | 10.6-27 μm |
| Object-side telecentricity | ≤0.15° |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 117.1 mm × Φ28 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
