Telecentric lenses

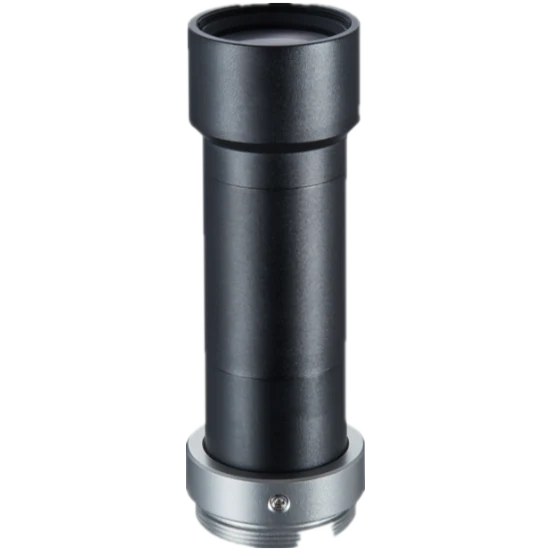

Object-Side Telecentric Lens, 0.8x, 65 mm WD, 2/3" (LS-MY-08-65-MP)
Model LS-MY-08-65-MP
Object-Side Telecentric Lens, 0.8x, 65 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-08-65-MP |
|---|---|
| Magnification | 0.8 |
| Working distance | 65±2 mm |
| F-number | F10 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 1.25 mm |
| Object-side resolution | 8.4 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Dimension | Φ26 mm × 89.7 mm |
| Weight | 150 g |
| Coaxial light | Not supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MY-15-200 | 1.5x, 200 mm WD, 2/3" | $679.00 | 2 in stock | View |
| LS-MY-15-63C | 1.5x, 63 mm WD, 2/3" | $679.00 | 3 in stock | View |
| LS-MY-1-180 | 1x, 180 mm WD, 2/3" | $689.00 | 4 in stock | View |
| LS-MY-1-150 | 1x, 150 mm WD, 2/3" | $689.00 | 5 in stock | View |
| LS-MY-1-410C | 1x, 410 mm WD, 2/3" | $689.00 | 2 in stock | View |
| LS-MY-1-370 | 1x, 370 mm WD, 2/3" | $689.00 | 4 in stock | View |
| LS-MY-1-510 | 1x, 510 mm WD, 2/3" | $689.00 | 3 in stock | View |
| LS-MY-1-300-V2 | 1x, 300 mm WD, 2/3" | $699.00 | 4 in stock | View |
| LS-MY-2-63 | 2x, 63 mm WD, 2/3" | $729.00 | 4 in stock | View |
| LS-MY-2-63C | 2x, 63 mm WD, 2/3" | $729.00 | 2 in stock | View |
| LS-MY-08-130C-MP | 0.8x, 130 mm WD, 2/3" | $739.00 | 2 in stock | View |
| LS-MY-08-130-MP | 0.8x, 130 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-1-110C-MP | 1x, 110 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-1-110-MP | 1x, 110 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-108 | 1x, 108 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-63 | 1x, 63 mm WD, 2/3" | $739.00 | 4 in stock | View |
| LS-MY-1-63C | 1x, 63 mm WD, 2/3" | $739.00 | 3 in stock | View |
| LS-MY-1-108C | 1x, 108 mm WD, 2/3" | $739.00 | 5 in stock | View |
| LS-MY-08-130G | 0.8x, 130 mm WD, 2/3" | $739.00 | 3 in stock | View |
| LS-MY-07-145-MP | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-08-300 | 0.8x, 300 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145 | 0.7x, 145 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145C | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-07-145C-G | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
