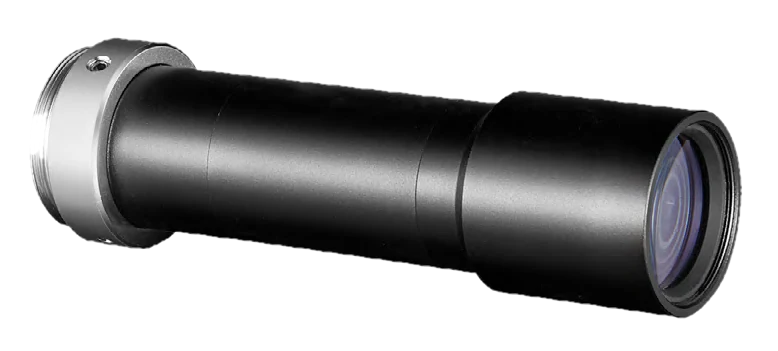

Object-Side Telecentric Lens, 0.7x, 70 mm WD, 2/3" (LS-MY-07-70)
Model LS-MY-07-70
Object-Side Telecentric Lens, 0.7x, 70 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MY-07-70 |
|---|---|
| Magnification | 0.7 |
| Working distance | 70 mm |
| F-number | F10 |
| Image size | Φ11 mm |
| Depth of field | 1.6 mm |
| Distortion | ≤0.2% |
| Object-side resolution | 9.5 μm |
| Object-side telecentricity | ≤0.01° |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 87.7 mm × Φ26 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MY-07-145-MP | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-08-300 | 0.8x, 300 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145 | 0.7x, 145 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-07-145C | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-07-145C-G | 0.7x, 145 mm WD, 2/3" | $759.00 | 4 in stock | View |
| LS-MY-07-145G | 0.7x, 145 mm WD, 2/3" | $759.00 | 2 in stock | View |
| LS-MY-08-180 | 0.8x, 180 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-08-108 | 0.8x, 108 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-136-73C | 1.36x, 73 mm WD, 2/3" | $789.00 | 5 in stock | View |
| LS-MY-08-108C | 0.8x, 108 mm WD, 2/3" | $789.00 | 2 in stock | View |
| LS-MY-08-250C-MP | 0.8x, 250 mm WD, 2/3" | $809.00 | 3 in stock | View |
| LS-MY-08-250-MP | 0.8x, 250 mm WD, 2/3" | $809.00 | 3 in stock | View |
| LS-MY-06-450 | 0.6x, 450 mm WD, 2/3" | $829.00 | 5 in stock | View |
| LS-MY-07-460 | 0.7x, 460 mm WD, 2/3" | $829.00 | 3 in stock | View |
| LS-MY-06-150 | 0.6x, 150 mm WD, 2/3" | $869.00 | 2 in stock | View |
| LS-MY-06-158 | 0.6x, 158 mm WD, 2/3" | $869.00 | 4 in stock | View |
| LS-MY-06-150C | 0.6x, 150 mm WD, 2/3" | $869.00 | 4 in stock | View |
| LS-MY-05-65 | 0.5x, 65 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110C-MP | 0.5x, 110 mm WD, 2/3" | $929.00 | 3 in stock | View |
| LS-MY-05-110-MP | 0.5x, 110 mm WD, 2/3" | $929.00 | 3 in stock | View |
| LS-MY-05-110C-G | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110G | 0.5x, 110 mm WD, 2/3" | $929.00 | 4 in stock | View |
| LS-MY-05-150 | 0.5x, 150 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110-V3 | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
