Home / Lenses / Telecentric lenses / M Series Object-Side Telecentric lenses

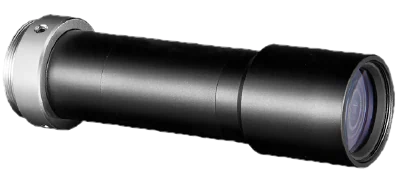

Object-Side Telecentric Lens, 0.5x, 150 mm WD, 2/3" (LS-MY-05-150)

Telecentric lenses

Object-Side Telecentric Lens, 0.5x, 150 mm WD, 2/3" (LS-MY-05-150)

Model LS-MY-05-150

Object-Side Telecentric Lens, 0.5x, 150 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"

$929.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-MY-05-1503D model (STEP, ZIP) - LS-MY-05-150

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 2/3"

Specifications

ModelLS-MY-05-150
Magnification0.5
Working distance150 mm
F-numberF13.4
Image sizeΦ11 mm
Depth of field4.3 mm
Distortion≤0.4%
Object-side resolution18.2 μm
Connector typeC-Mount
Coaxial lightNot supported
Dimension107.4 mm × Φ28 mm
Temperature-10 ~ 50 °C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the M Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-MY-08-250-MP0.8x, 250 mm WD, 2/3" $809.00 3 in stockView
LS-MY-07-700.7x, 70 mm WD, 2/3" $819.00 2 in stockView
LS-MY-06-4500.6x, 450 mm WD, 2/3" $829.00 5 in stockView
LS-MY-07-4600.7x, 460 mm WD, 2/3" $829.00 3 in stockView
LS-MY-06-1500.6x, 150 mm WD, 2/3" $869.00 2 in stockView
LS-MY-06-1580.6x, 158 mm WD, 2/3" $869.00 4 in stockView
LS-MY-06-150C0.6x, 150 mm WD, 2/3" $869.00 4 in stockView
LS-MY-05-650.5x, 65 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110C-MP0.5x, 110 mm WD, 2/3" $929.00 3 in stockView
LS-MY-05-110-MP0.5x, 110 mm WD, 2/3" $929.00 3 in stockView
LS-MY-05-110C-G0.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110G0.5x, 110 mm WD, 2/3" $929.00 4 in stockView
LS-MY-05-110-V30.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110C-V30.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MT-05-1100.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-027-120-MP0.27x, 120 mm WD, 2/3" $969.00 4 in stockView
LS-MY-03-110C-V30.3x, 110 mm WD, 2/3" $969.00 3 in stockView
LS-MY-03-110-V30.3x, 110 mm WD, 2/3" $969.00 2 in stockView
LS-MY-07-1080.7x, 108 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-1800.3x, 180 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-1100.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-110-G0.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-04-1100.4x, 110 mm WD, 2/3" $1,039.00 5 in stockView
LS-MT-03-2200.3x, 220 mm WD, 2/3" $1,039.00 5 in stockView

See all 99 models in the M Series Object-Side Telecentric lenses series
