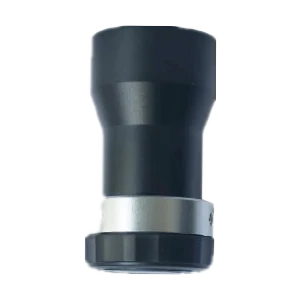

Object-Side Telecentric Lens, 0.27x, 120 mm WD, 2/3" (LS-MY-027-120-MP)
Model LS-MY-027-120-MP
Object-Side Telecentric Lens, 0.27x, 120 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-027-120-MP |
|---|---|
| Magnification | 0.27 |
| Working distance | 120±2 mm |
| F-number | F14.3 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.9% |
| Depth of field | 15.7 mm |
| Object-side resolution | 35.7 μm |
| Connector type | C-Mount |
| Dimension | Φ28 mm×43.7 mm |
| Weight | 150 g |
| Coaxial light | Not supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MY-06-150 | 0.6x, 150 mm WD, 2/3" | $869.00 | 2 in stock | View |
| LS-MY-06-158 | 0.6x, 158 mm WD, 2/3" | $869.00 | 4 in stock | View |
| LS-MY-06-150C | 0.6x, 150 mm WD, 2/3" | $869.00 | 4 in stock | View |
| LS-MY-05-65 | 0.5x, 65 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110C-MP | 0.5x, 110 mm WD, 2/3" | $929.00 | 3 in stock | View |
| LS-MY-05-110-MP | 0.5x, 110 mm WD, 2/3" | $929.00 | 3 in stock | View |
| LS-MY-05-110C-G | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110G | 0.5x, 110 mm WD, 2/3" | $929.00 | 4 in stock | View |
| LS-MY-05-150 | 0.5x, 150 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110-V3 | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-05-110C-V3 | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MT-05-110 | 0.5x, 110 mm WD, 2/3" | $929.00 | 5 in stock | View |
| LS-MY-03-110C-V3 | 0.3x, 110 mm WD, 2/3" | $969.00 | 3 in stock | View |
| LS-MY-03-110-V3 | 0.3x, 110 mm WD, 2/3" | $969.00 | 2 in stock | View |
| LS-MY-07-108 | 0.7x, 108 mm WD, 2/3" | $969.00 | 5 in stock | View |
| LS-MT-03-180 | 0.3x, 180 mm WD, 2/3" | $969.00 | 5 in stock | View |
| LS-MT-03-110 | 0.3x, 110 mm WD, 2/3" | $969.00 | 5 in stock | View |
| LS-MT-03-110-G | 0.3x, 110 mm WD, 2/3" | $969.00 | 5 in stock | View |
| LS-MT-04-110 | 0.4x, 110 mm WD, 2/3" | $1,039.00 | 5 in stock | View |
| LS-MT-03-220 | 0.3x, 220 mm WD, 2/3" | $1,039.00 | 5 in stock | View |
| LS-MY-045-135C-MP | 0.45x, 135 mm WD, 2/3" | $1,149.00 | 3 in stock | View |
| LS-MY-045-135 | 0.45x, 135 mm WD, 2/3" | $1,149.00 | 3 in stock | View |
| LS-MY-022-235 | 0.22x, 235 mm WD, 2/3" | $1,169.00 | 4 in stock | View |
| LS-MT-022-200 | 0.22x, 200 mm WD, 2/3" | $1,259.00 | 2 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
