Home / Lenses / Telecentric lenses / M Series Object-Side Telecentric lenses

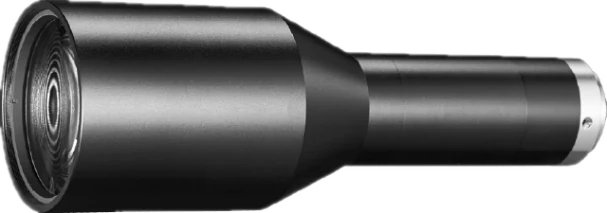

Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3" (LS-MT-03-180)

Telecentric lenses

Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3" (LS-MT-03-180)

Model LS-MT-03-180

Object-Side Telecentric Lens, 0.3x, 180 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"

$969.00 USDIn stock · 5 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-MT-03-1803D model (STEP, ZIP) - LS-MT-03-180

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 2/3"

Specifications

ModelLS-MT-03-180
Magnification0.3
Working distance180 mm
F-numberF10
Image sizeΦ11 mm
Depth of field±4.4 mm @F10
Distortion≤0.1%
Object-side resolution20.8 μm
Object-side telecentricity≤0.1°
Connector typeC-Mount
Coaxial lightNot supported
Dimension166.3 mm × Φ52 mm
Temperature-10 ~ 50 °C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the M Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-MY-05-110C-MP0.5x, 110 mm WD, 2/3" $929.00 3 in stockView
LS-MY-05-110-MP0.5x, 110 mm WD, 2/3" $929.00 3 in stockView
LS-MY-05-110C-G0.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110G0.5x, 110 mm WD, 2/3" $929.00 4 in stockView
LS-MY-05-1500.5x, 150 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110-V30.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-05-110C-V30.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MT-05-1100.5x, 110 mm WD, 2/3" $929.00 5 in stockView
LS-MY-027-120-MP0.27x, 120 mm WD, 2/3" $969.00 4 in stockView
LS-MY-03-110C-V30.3x, 110 mm WD, 2/3" $969.00 3 in stockView
LS-MY-03-110-V30.3x, 110 mm WD, 2/3" $969.00 2 in stockView
LS-MY-07-1080.7x, 108 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-1100.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-110-G0.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-04-1100.4x, 110 mm WD, 2/3" $1,039.00 5 in stockView
LS-MT-03-2200.3x, 220 mm WD, 2/3" $1,039.00 5 in stockView
LS-MY-045-135C-MP0.45x, 135 mm WD, 2/3" $1,149.00 3 in stockView
LS-MY-045-1350.45x, 135 mm WD, 2/3" $1,149.00 3 in stockView
LS-MY-022-2350.22x, 235 mm WD, 2/3" $1,169.00 4 in stockView
LS-MT-022-2000.22x, 200 mm WD, 2/3" $1,259.00 2 in stockView
LS-MY-04-650.4x, 65 mm WD, 2/3" $1,309.00 3 in stockView
LS-MY-02-1400.2x, 140 mm WD, 2/3" $1,379.00 2 in stockView
LS-MY-022-1350.22x, 135 mm WD, 2/3" $1,379.00 3 in stockView
LS-MY-0349-970.349x, 96.9 mm WD, 2/3" $1,379.00 3 in stockView

See all 99 models in the M Series Object-Side Telecentric lenses series
