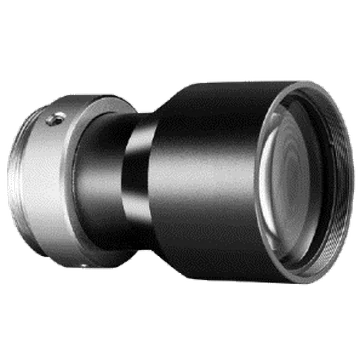

Object-Side Telecentric Lens, 0.22x, 135 mm WD, 2/3" (LS-MY-022-135)

Telecentric lenses

Object-Side Telecentric Lens, 0.22x, 135 mm WD, 2/3" (LS-MY-022-135)

Model LS-MY-022-135

Object-Side Telecentric Lens, 0.22x, 135 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"

$1,379.00 USDIn stock · 3 available

Inventory updated Oct 16, 2026

0.66 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this lens → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-MY-022-1353D model (STEP, ZIP) - LS-MY-022-135

Features

  • Excellent image quality with an optimized fixed-magnification design
  • Supports cameras up to 2/3"

Specifications

ModelLS-MY-022-135
Magnification0.22
Working distance135 mm
F-numberF11.9
Image sizeΦ11 mm
Depth of field19.7 mm
Distortion≤0.25%
Object-side resolution36.1 μm
Connector typeC-Mount
Coaxial lightNot supported
Dimension66.5 mm × Φ30 mm
Temperature-10 ~ 50 °C
CertificationRoHS2.0
Shipping weight (estimated)0.66 kg
Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Configure a system Selection guide

Other sizes in the M Series Object-Side Telecentric lenses series

ModelSizePriceAvailability
LS-MY-07-1080.7x, 108 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-1800.3x, 180 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-1100.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-03-110-G0.3x, 110 mm WD, 2/3" $969.00 5 in stockView
LS-MT-04-1100.4x, 110 mm WD, 2/3" $1,039.00 5 in stockView
LS-MT-03-2200.3x, 220 mm WD, 2/3" $1,039.00 5 in stockView
LS-MY-045-135C-MP0.45x, 135 mm WD, 2/3" $1,149.00 3 in stockView
LS-MY-045-1350.45x, 135 mm WD, 2/3" $1,149.00 3 in stockView
LS-MY-022-2350.22x, 235 mm WD, 2/3" $1,169.00 4 in stockView
LS-MT-022-2000.22x, 200 mm WD, 2/3" $1,259.00 2 in stockView
LS-MY-04-650.4x, 65 mm WD, 2/3" $1,309.00 3 in stockView
LS-MY-02-1400.2x, 140 mm WD, 2/3" $1,379.00 2 in stockView
LS-MY-0349-970.349x, 96.9 mm WD, 2/3" $1,379.00 3 in stockView
LS-MT-0348-1350.348x, 135 mm WD, 2/3" $1,379.00 5 in stockView
LS-MY-03-1400.3x, 140 mm WD, 2/3" $1,519.00 2 in stockView
LS-MY-018-150-MP0.18x, 150 mm WD, 2/3" $1,609.00 3 in stockView
LS-MY-0188-1670.188x, 167 mm WD, 2/3" $1,609.00 3 in stockView
LS-MY-03-2400.3x, 240 mm WD, 2/3" $1,929.00 5 in stockView
LS-MY-05-2700.5x, 270 mm WD, 2/3" $2,609.00 2 in stockView
LS-MY-043-3270.43x, 327 mm WD, 2/3" $2,889.00 5 in stockView
LS-MY-01-2900.1x, 290 mm WD, 2/3" $3,129.00 2 in stockView
LS-MY-02-3000.2x, 300 mm WD, 2/3" $3,129.00 5 in stockView
LS-MY-04-4000.4x, 400 mm WD, 2/3" $3,469.00 3 in stockView
LS-MY-015-6800.15x, 680 mm WD, 2/3" $4,259.00 3 in stockView

See all 99 models in the M Series Object-Side Telecentric lenses series
