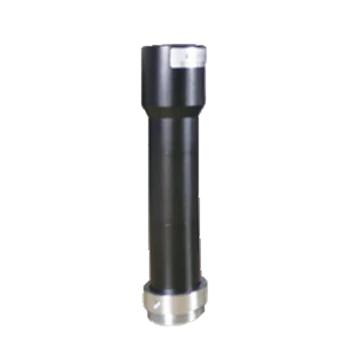

Object-Side Telecentric Lens, 0.18x, 150 mm WD, 2/3" (LS-MY-018-150-MP)
Model LS-MY-018-150-MP
Object-Side Telecentric Lens, 0.18x, 150 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3”
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3”
Specifications
| Model | LS-MY-018-150-MP |
|---|---|
| Magnification | 0.18 |
| Working distance | 150±2 mm |
| F-number | F12.6 |
| Image size | Φ11 mm |
| Optical distortion | ≤ 0.1% |
| Depth of field | 30 mm |
| Object-side resolution | 48 μm |
| Connector type | C-Mount |
| Dimension | Φ30 mm × 77.2 mm |
| Weight | 150 g |
| Coaxial light | Not supported |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Object-Side Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MT-03-110-G | 0.3x, 110 mm WD, 2/3" | $969.00 | 5 in stock | View |
| LS-MT-04-110 | 0.4x, 110 mm WD, 2/3" | $1,039.00 | 5 in stock | View |
| LS-MT-03-220 | 0.3x, 220 mm WD, 2/3" | $1,039.00 | 5 in stock | View |
| LS-MY-045-135C-MP | 0.45x, 135 mm WD, 2/3" | $1,149.00 | 3 in stock | View |
| LS-MY-045-135 | 0.45x, 135 mm WD, 2/3" | $1,149.00 | 3 in stock | View |
| LS-MY-022-235 | 0.22x, 235 mm WD, 2/3" | $1,169.00 | 4 in stock | View |
| LS-MT-022-200 | 0.22x, 200 mm WD, 2/3" | $1,259.00 | 2 in stock | View |
| LS-MY-04-65 | 0.4x, 65 mm WD, 2/3" | $1,309.00 | 3 in stock | View |
| LS-MY-02-140 | 0.2x, 140 mm WD, 2/3" | $1,379.00 | 2 in stock | View |
| LS-MY-022-135 | 0.22x, 135 mm WD, 2/3" | $1,379.00 | 3 in stock | View |
| LS-MY-0349-97 | 0.349x, 96.9 mm WD, 2/3" | $1,379.00 | 3 in stock | View |
| LS-MT-0348-135 | 0.348x, 135 mm WD, 2/3" | $1,379.00 | 5 in stock | View |
| LS-MY-03-140 | 0.3x, 140 mm WD, 2/3" | $1,519.00 | 2 in stock | View |
| LS-MY-0188-167 | 0.188x, 167 mm WD, 2/3" | $1,609.00 | 3 in stock | View |
| LS-MY-03-240 | 0.3x, 240 mm WD, 2/3" | $1,929.00 | 5 in stock | View |
| LS-MY-05-270 | 0.5x, 270 mm WD, 2/3" | $2,609.00 | 2 in stock | View |
| LS-MY-043-327 | 0.43x, 327 mm WD, 2/3" | $2,889.00 | 5 in stock | View |
| LS-MY-01-290 | 0.1x, 290 mm WD, 2/3" | $3,129.00 | 2 in stock | View |
| LS-MY-02-300 | 0.2x, 300 mm WD, 2/3" | $3,129.00 | 5 in stock | View |
| LS-MY-04-400 | 0.4x, 400 mm WD, 2/3" | $3,469.00 | 3 in stock | View |
| LS-MY-015-680 | 0.15x, 680 mm WD, 2/3" | $4,259.00 | 3 in stock | View |
| LS-MT-03-350 | 0.3x, 350 mm WD, 2/3" | $4,259.00 | 5 in stock | View |
| LS-MY-02-625 | 0.2x, 625 mm WD, 2/3" | $5,699.00 | 3 in stock | View |
| LS-MY-025-760 | 0.25x, 760 mm WD, 2/3" | $5,699.00 | 5 in stock | View |
See all 99 models in the M Series Object-Side Telecentric lenses series
