Cables

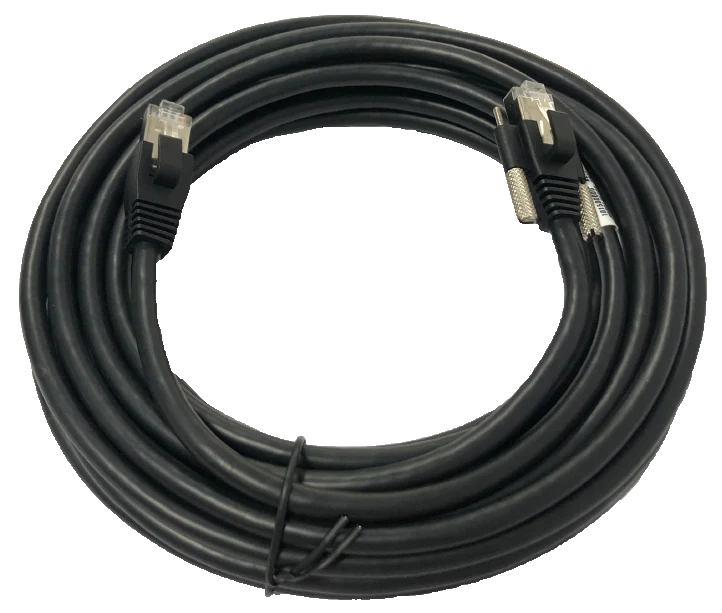

Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m (LS-ACG-RJ45S-RJ45-SF-3M)
Model LS-ACG-RJ45S-RJ45-SF-3M
Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m. The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Features
- The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACG-RJ45S-RJ45-SF-3M |
|---|---|
| End A connector | RJ45 (with locking stud) |
| End B connector | RJ45 |
| Cable diameter | 6.5 mm |
| Length | 3 m |
| Cable mechanical | 4P*26#+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Min. bending radius | 78 mm |
| Applicable scenario | Tank chain, Robot arm |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 5 million times |
| Max. ±180° torsional cycles | 3 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
