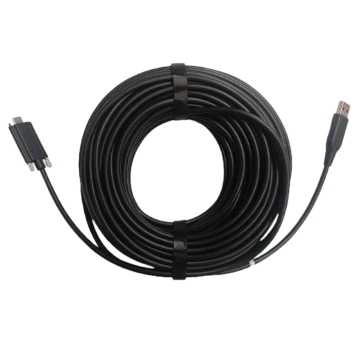

Camera Data Cable, Type-C male, screw locking to A male, 3 m (LS-ACU3-CMS-AM-SF-3M)
Model LS-ACU3-CMS-AM-SF-3M
Camera Data Cable, Type-C male, screw locking to A male, 3 m.
Specifications
| Model | LS-ACU3-CMS-AM-SF-3M |
|---|---|
| End A connector | Type-C male, screw locking |
| End B connector | A male |
| Cable diameter | 4.8 mm |
| Length | 3 m |
| Cable mechanical | AOC-Hybrid-U-2A1b+6*24AWG+B |
| Jacket | TPU |
| Cable color | Black |
| Connector durability | 5, 000 mating cycles |
| Min. bending radius | 57.6 mm |
| Applicable scenario | Static scenes / drag chains |
| Max. U-type bending cycles | 10 million times |
| Max. voltage | 5 VDC |
| Working temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
