Cables

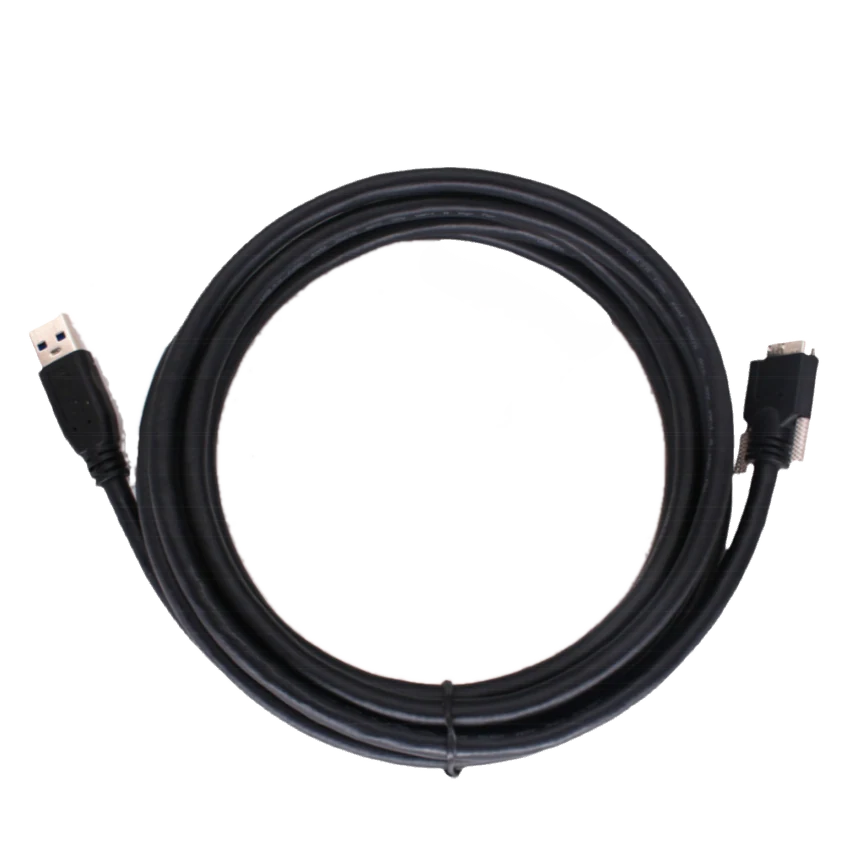

Camera Data Cable, Micro-B male (with screw) to A male, 3 m (LS-ACU3-MBMS-AM-FL-3M)
Model LS-ACU3-MBMS-AM-FL-3M
Camera Data Cable, Micro-B male (with screw) to A male, 3 m. The USB 3.0 Flexible Data Cable can be used for data transmission and power supply of USB 3.0 interface cameras.
Features
- The USB 3.0 Flexible Data Cable can be used for data transmission and power supply of USB 3.0 interface cameras.
Specifications
| Model | LS-ACU3-MBMS-AM-FL-3M |
|---|---|
| End A connector | Micro-B male (with screw) |
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Length | 3 m |
| Cable mechanical | 26#*1P+24#*2C+26#*(1P+D)+AL+D+B |
| Jacket | Nitrile PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 81.6 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 100 thousand times |
| Max. voltage | 5 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
