Cables

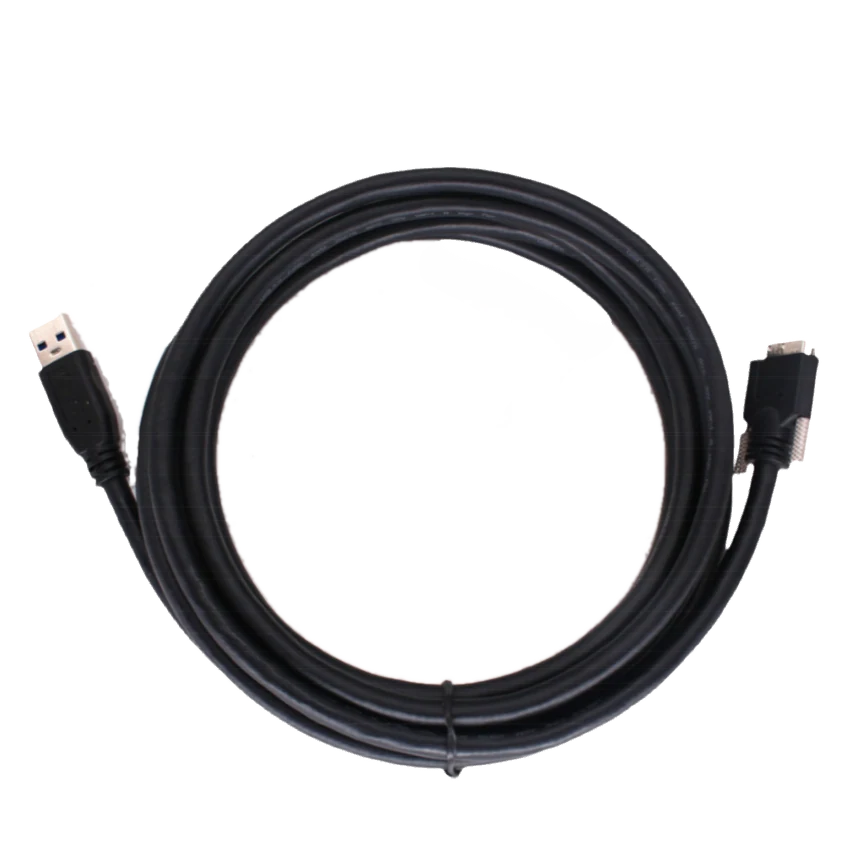

Camera Data Cable, Micro-B male (with screw) to A male, 2 m (LS-ACU3-MBMS-AM-ST-2M)
Model LS-ACU3-MBMS-AM-ST-2M
Camera Data Cable, Micro-B male (with screw) to A male, 2 m. The USB3.0 Standard Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Features
- The USB3.0 Standard Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACU3-MBMS-AM-ST-2M |
|---|---|
| End A connector | Micro-B male (with screw) |
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Length | 2 m |
| Cable mechanical | (26#*1P+EAM)*2+26#*1P*20#*2C+AEB |
| Jacket | Nitrile PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 81.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 5 VDC |
| Working temperature | -20°C~ 80°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
