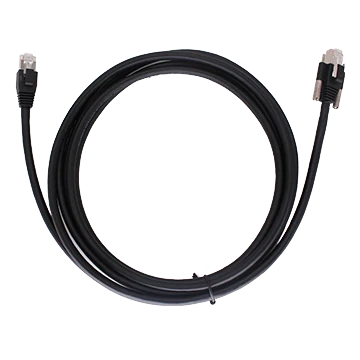

Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m (LS-AC10G-RJ45S-RJ45-ST-3M)
Model LS-AC10G-RJ45S-RJ45-ST-3M
Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m. The RJ45 Standard 10 Gigabit Ethernet Cable can be used for data transmission of RJ45 10 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Features
- The RJ45 Standard 10 Gigabit Ethernet Cable can be used for data transmission of RJ45 10 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-AC10G-RJ45S-RJ45-ST-3M |
|---|---|
| End A connector | RJ45 (with locking stud) |
| End B connector | RJ45 |
| Cable diameter | 7.0 mm |
| Length | 3 m |
| Cable mechanical | (26#*1P+AL)*4C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
