Cables

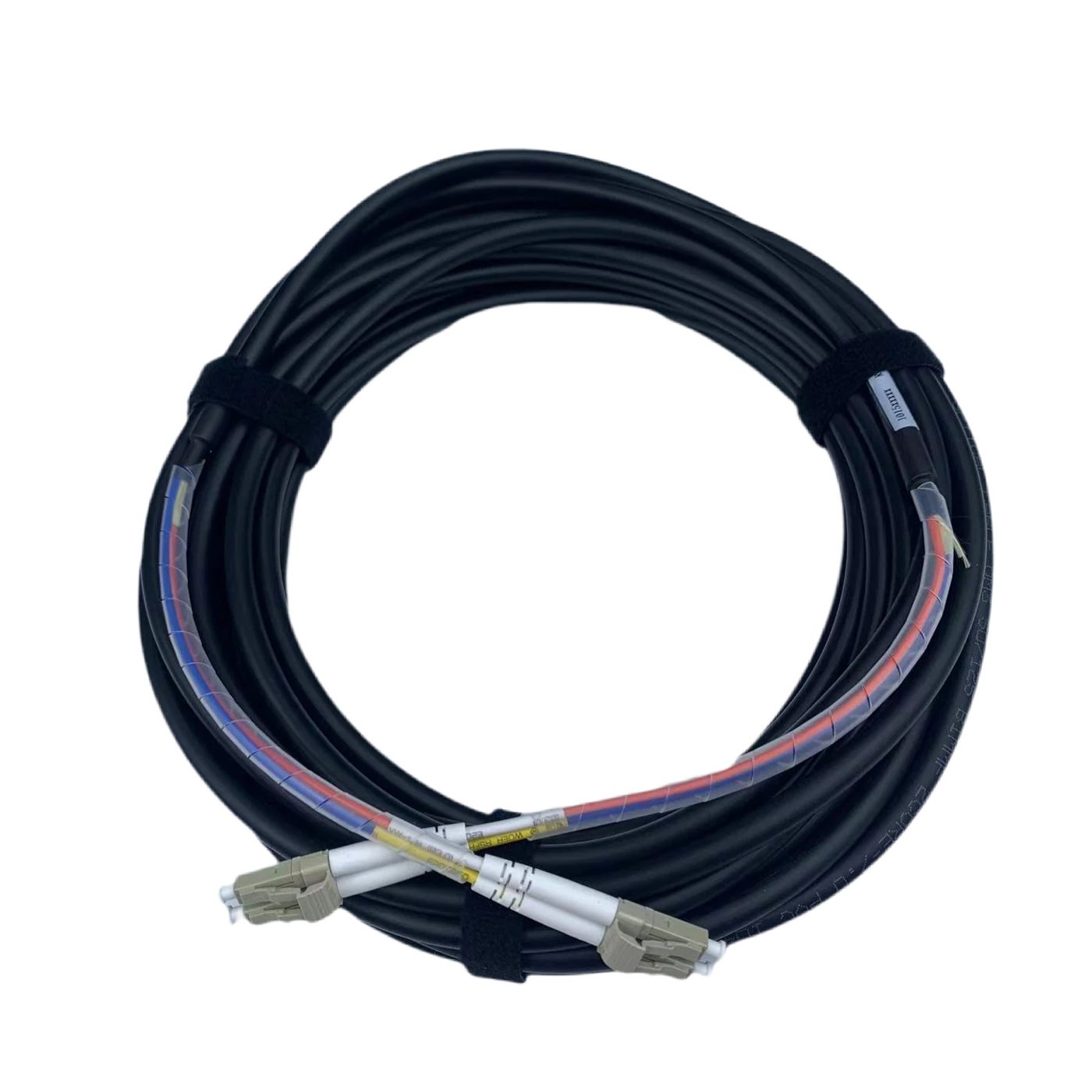

Camera Data Cable, LC (2-core) to LC (2-core), 3 m (LS-AC10G-2LC-2LC-ST-3M)
Model LS-AC10G-2LC-2LC-ST-3M
Camera Data Cable, LC (2-core) to LC (2-core), 3 m. The high flex 10 GigE optical fiber patch cord, with central wavelength 850 nm and multimode 50 μm/125 μm, can be used for data transmission of 10 GigE optical fiber port in static scenes.
Features
- The high flex 10 GigE optical fiber patch cord, with central wavelength 850 nm and multimode 50 μm/125 μm, can be used for data transmission of 10 GigE optical fiber port in static scenes.
Specifications
| Model | LS-AC10G-2LC-2LC-ST-3M |
|---|---|
| End A connector | LC (2-core) |
| End B connector | LC (2-core) |
| Cable diameter | 6.5 mm |
| Length | 3 m |
| Fiber type | Multimode 50 μm/125 μm |
| Central wavelength | 850 nm |
| Insertion loss | ≤ 0.30 dB |
| Return loss | ≥ 36 dB |
| Cable color | Black |
| Connector durability | 200 mating cycles |
| Applicable scenario | Static scenes |
| Working temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
