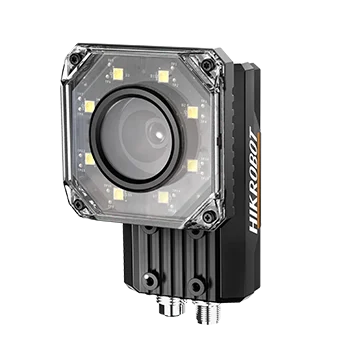

Hikrobot IDT5066L 8 mm manual-focus lens, 6 MP full-featured industrial code reader
Model IDT5066L
Hikrobot IDT5066L 8 mm manual-focus lens, 6 MP full-featured industrial code reader. High-performance 6 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Features
- High-performance 6 MP rolling-shutter sensor for excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Multiple lens mounts; optional mechanical-focus lens focuses automatically for easy setup
- Supports TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
- Integrated multi-zone controllable lighting module for versatile options
- IP67 protection for harsh industrial environments
Specifications
| Model | IDT5066L |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 30 fps |
| Max. reading speed | 90 codes/s |
| Sensor type | CMOS, Rolling shutter |
| Pixel size | 2.4 µm × 2.4 µm |
| Sensor size | 1/1.8” |
| Resolution | 3072 × 2048 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 dB ~ 40 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, PROFINET, Ethernet/IP, MELSEC, Fins, ModBus, SLMP |
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. |
| Power supply | 24 VDC |
| Max. power consumption | 20 W @ 24 VDC (built-in light on) |
| Focal length | 8 mm |
| Lens mount | M12-Mount, Mechanical focus adjustable |
| Lens cap | Clear lens cover, Polarizing lens cover optional |
| Light source | White light, Red light optional, Blue or IR light |
| Indicator | Power indicator PWR, Network indicator LNK/ACT, User indicators U1/U2 |
| Dimension | 118.7 mm × 78 mm × 73.2 mm |
| Weight | Approx. 520 g (1.1 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
| Shipping weight (estimated) | 0.83 kg |
