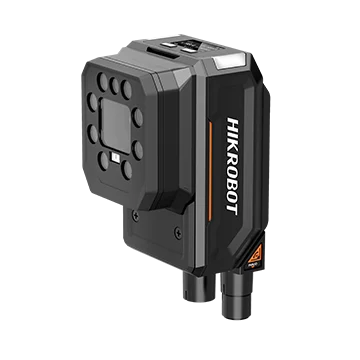

Hikrobot CY-C050XM-08MR 5 MP industrial code reader
Model CY-C050XM-08MR
Hikrobot CY-C050XM-08MR 5 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Screen and buttons work together for easy auto-tuning, parameter configuration, system information preview and other basic operations
- Status indicators visible from multiple sides show code-reading status at a glance
- Rotatable cable exit and compact body for flexible installation in tight spaces
- Multi-zone light control automatically switches to the best illumination for the workpiece material
- Rich I/O interface for multiple input and output signals
- Multiple high-precision sensors make it easy to replicate or restore the mounting position
- Extensive accessories; some models support add-on strobe lights, multi-color lights, wafer lights and more to solve industry pain points
Specifications
| Model | CY-C050XM-08MR |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.; 2D code: QR Code, Data Matrix, MicroQR, AZTEC, HanXin, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 92 fps |
| Max. reading speed | 96 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/1.45” |
| Resolution | 2432 × 2048 |
| Exposure time | 38 μs ~ 3 ms |
| Gain | 0 dB ~ 37 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, Ethernet/IP, ModBus, UDP, FINS |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O, Includes 3 opto-isolated inputs (LineIn 0/1/2), 3 opto-isolated outputs (LineOut 3/4/5), 1× RS-232 input, 1 RS-232 output; Device trigger via body display and buttons supported |
| Power supply | 24 VDC |
| Max. power consumption | 12 W @ 24 VDC (built-in light on) |
| Focal length | 8 mm |
| Lens mount | M12-mount, mechanical focusing |
| Lens cap | Semi-polarizing lens cover, Clear optional, Full-polarized, Diffuse lens cover |
| Light source | Red light, White light optional, Blue or IR light |
| Indicator | Multi-angle body indicators |
| Dimension | Straight: 112.3 mm × 54 mm × 60.2 mm; Right-angle: 88.7 mm × 54 mm × 82.5 mm |
| Weight | Approx. 410 g |
| Ingress protection | IP67 |
| Temperature | Operating temperature 0 ~ 50℃, Storage temperature: -30 to 70 ℃ |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.67 kg |
