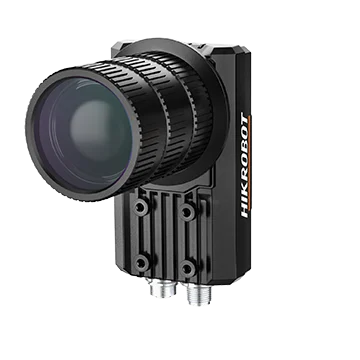

Hikrobot MV-FX5000-01 C-mount code reader, No lens, No light, 20 MP resolution

Name: Hikrobot MV-FX5000-01 C-mount code reader, No lens, No light, 20 MP resolution
Brand: Hikrobot
SKU: MV-FX5000-01

Model MV-FX5000-01

Hikrobot MV-FX5000-01 C-mount code reader, No lens, No light, 20 MP resolution. High-performance 20 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Datasheet (PDF, Chinese) - MV-FX5000-01

Features

High-performance 20 MP rolling-shutter sensor for excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Supports TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
Checkerboard ROI reads up to 200 2D codes at once
IP67 protection for harsh industrial environments

Specifications

Model	MV-FX5000-01
Brand	Hikrobot
Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc.
Max. frame rate	20 fps
Pixel size	2.4 μm × 2.4 μm
Max. reading speed	36 codes/sec
Sensor type	CMOS, Rolling shutter
Sensor size	1”
Resolution	5440 × 3648
Exposure time	16 μs ~ 500 ms
Gain	0 dB ~ 40 dB
Mono/color	Mono
Communication protocol	1 dB to 2.5 dB
Certification	CE, FCC, RoHS, KC
Client software	IDMVS
Data interface	Fast Ethernet(1000 Mbit/s)
Digital I/O	Mono
Power supply	12 VDC ~ 24 VDC
Max. power consumption	12 W@24 VDC
Lens mount	C-Mount 6mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50 mm optional
Light source	With external bar light
Lens cap	Transparent lens cap
Indicator	C-mount
Dimension	109.5 mm × 64.4 mm × 109 mm
Weight	Approx. 470 g (1.0 lb.)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Shipping weight (estimated)	0.76 kg
