Fixed code readers

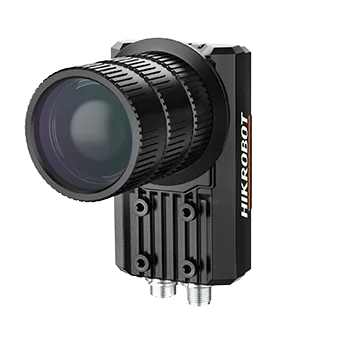

Hikrobot FX-5250M 25 MP smart code reader
Model FX-5250M
Hikrobot FX-5250M 25 MP smart code reader. High-performance 25 MP global-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Features
- High-performance 25 MP global-shutter sensor for excellent image quality
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Supports TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
- Checkerboard ROI reads up to 200 2D codes at once
- IP67 protection for harsh industrial environments
Specifications
| Model | FX-5250M |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial25, PharmaCode, etc.; 2D code: QR Code, Data Matrix, MicroQR, AZTEC, HANXIN, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 15 fps |
| Max. reading speed | 36 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1.1” |
| Resolution | 5120×5120 |
| Exposure time | 16 μs ~ 500 ms |
| Gain | 1 dB ~ 2.5 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP |
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
| Digital I/O | Mono |
| Power supply | 12 VDC ~ 24 VDC |
| Max. power consumption | 12 W@24 VDC |
| Lens mount | C-Mount |
| Light source | Not included |
| Lens cap | Transparent lens cap |
| Indicator | C-mount |
| Dimension | 109.5 mm × 64.4 mm × 109 mm |
| Weight | Approx. 470 g (1.0 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.76 kg |
