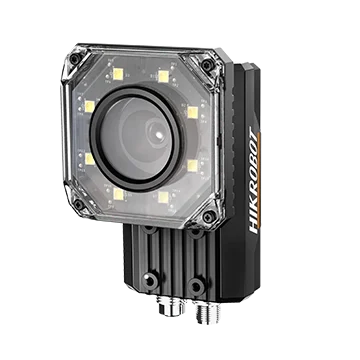

Hikrobot CY-C060M-08W 6 MP smart code reader

Name: Hikrobot CY-C060M-08W 6 MP smart code reader
Brand: Hikrobot
SKU: CY-C060M-08W

Model CY-C060M-08W

Hikrobot CY-C060M-08W 6 MP smart code reader. High-performance 6 MP rolling-shutter sensor for excellent image quality Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions

Datasheet (PDF, Chinese) - CY-C060M-08W

Features

High-performance 6 MP rolling-shutter sensor for excellent image quality
Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
Multiple lens mounts; optional mechanical-focus lens focuses automatically for easy setup
Supports TCP/IP, Serial, FTP, Profinet, Ethernet/IP, MELSEC, Fins and other protocols
Integrated multi-zone controllable lighting module for versatile options
IP67 protection for harsh industrial environments

Specifications

Model	CY-C060M-08W
Brand	Hikrobot
Symbologies	1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, etc.; 2D code: QR, DM, etc.; Stacked code: PDF417, etc.
Max. frame rate	30 fps
Max. reading speed	90 codes/s
Sensor type	CMOS, Rolling shutter
Pixel size	2.4 µm × 2.4 µm
Sensor size	1/1.8”
Resolution	3072 × 2048
Exposure time	16 μs ~ 1 sec
Gain	0 dB ~ 40 dB
Mono/color	Mono
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, PROFINET, Ethernet/IP, MELSEC, Fins, ModBus, SLMP
Data interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	Mono
Power supply	24 VDC
Power consumption	20 W @ 24 VDC (built-in light on)
Focal length	8 mm
Lens mount	M12-Mount, Mechanical focus adjustable
Lens cap	Clear lens cover, Polarizing lens cover optional
Light source	White light, Red light optional, Blue or IR light
Indicator	Power indicator PWR, Network indicator LNK/ACT, User indicator U1/U2
Dimension	118.7 mm × 78 mm × 73.2 mm
Weight	Approx. 520 g (1.1 lb.)
Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client software	IDMVS
Certification	CE, RoHS, KC
Shipping weight (estimated)	0.83 kg
